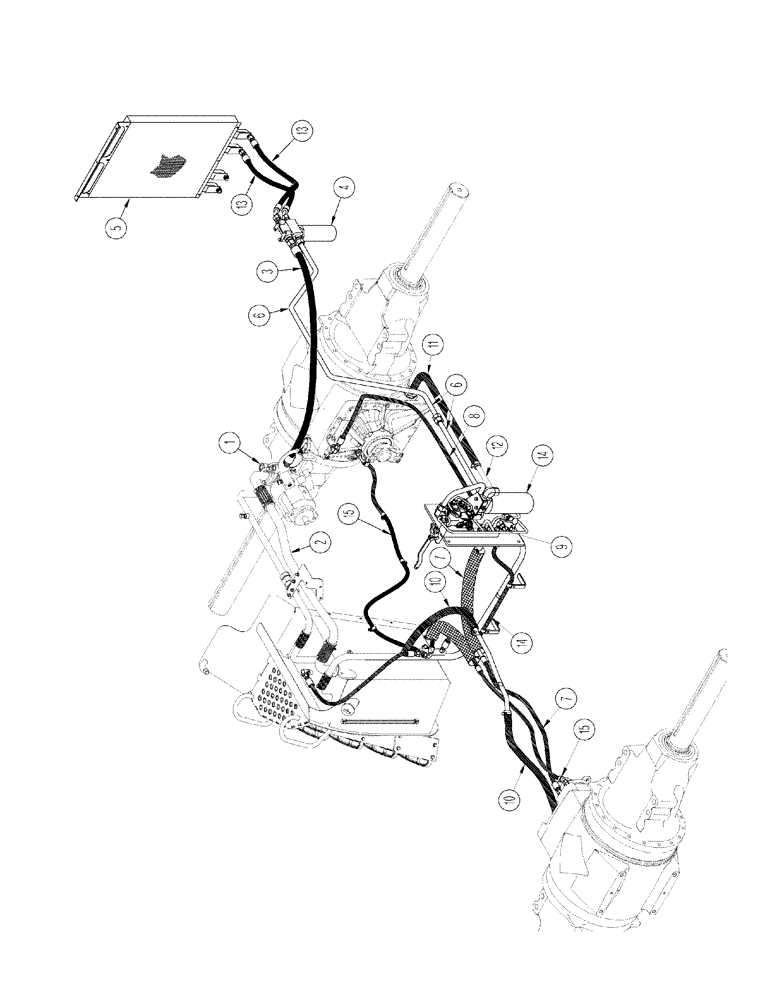

Запчасти Case IH STX325 (01-04[04]) - PICTORIAL INDEX - AXLE LUBE CIRCUIT WITH ACCUSTEER, ASN JEE0102001 (00) - PICTORIAL INDEX

1

PUMP Gear, See Figure 08-22

1шт.

2

TUBE Gear Pump Supply, See Figures 08-14, 08-15, 08-19 (02)

1шт.

3

HOSE Gear Pump To Filter, See Figures 08-14, 08-15, 08-19 (02)

1шт.

4

FILTER Right-Hand, See Figure 08-03

1шт.

5

COOLER Hydraulic Oil, See Figure 08-02

1шт.

6

TUBE Filter To Regulator Valve, See Figure 08-09

1шт.

7

HOSE Regulator Valve, Supply To Rear Axle, See Figure 08-06 (01)

1шт.

8

HOSE Regulator Valve, Supply To Front Axle, See Figures 07-04 (04), 07-05 (04)

1шт.

9

VALVE Regulator, See Figure 08-39

1шт.

10

HOSE Rear Axle, Return To Tank, See Figure 08-05

1шт.

11

HOSE Front Axle, Return To Tank, See Figure 08-06 (01)

1шт.

12

TUBE Return, See Figure 05-01 (02)

1шт.

13

HOSE Filter To Cooler, See Figure 08-01

1шт.

14

HOSE Tow Valve, Return To Tank, See Figure 07-05 (04)

1шт.

15

HOSE Vent, See Figure 08-06 (04)

1шт.

16

TUBE Front Axle, Air/Lube Supply, See Figure 08-08 (01)

1шт.

17

HOSE Front Axle, Air/Lube Supply, See Figure 08-08 (01)

1шт.

18

HOSE Air Supply, See Figure 08-08 (01)

1шт.

19

TUBE Air Supply, To Rear Axle, see Figure 08-08 (01)

1шт.

20

PUMP Axle Air/Lube, See Figure 08-08 (01)

1шт.

21

HOSE Rear Axle, Air/Lube Supply, See Figures 07-04 (04), 07-05 (04)

1шт.

Used on models without PTO

1шт.
