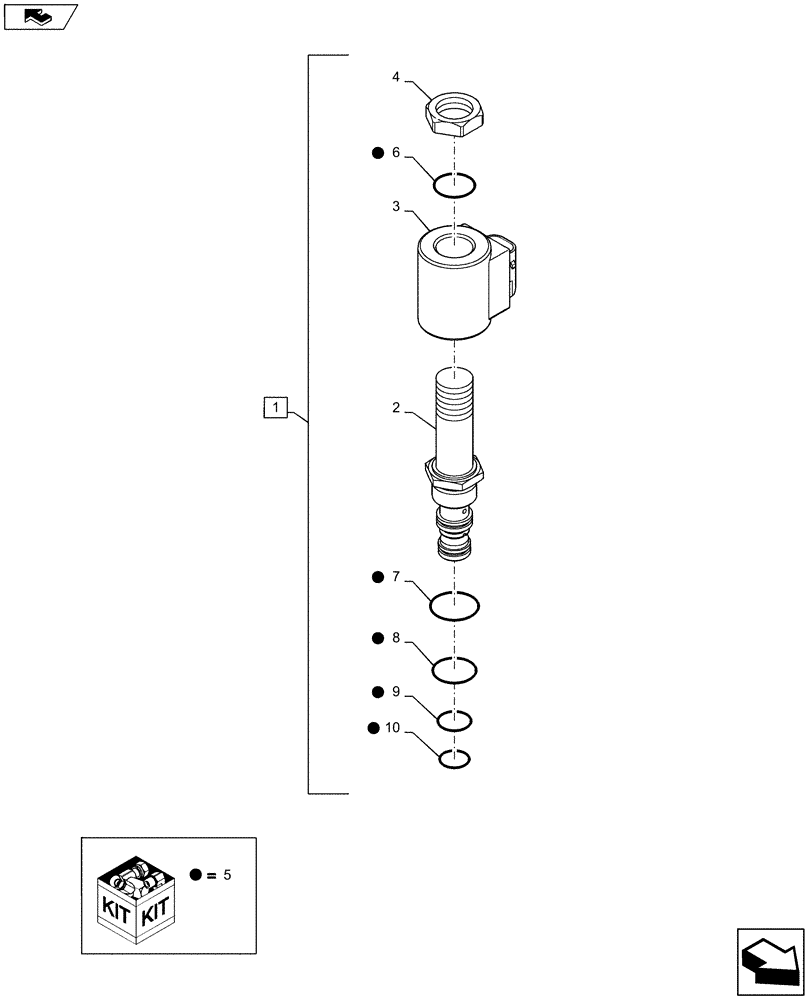

Запчасти Case IH STX325 (06-43) - VALVE ASSEMBLY - PULSE WIDTH MODULATION (06) - POWER TRAIN

1

84135530

SOLENOID VALVE

Pulse Width Modulation, Incl 2 - 4, 6 - 10

1шт.

2

304831A1

SPOOL

Valve, Solenoid

1шт.

3

304834A1

SOLENOID

PWM Valve

1шт.

4

304836A1

NUT

1шт.

5

308245A1

SEAL KIT

1шт.

6

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

7

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
