Запчасти Case IH STX325 (06-42) - POWER SHIFT TRANSMISSION - RANGE SELECTOR VALVE (06) - POWER TRAIN

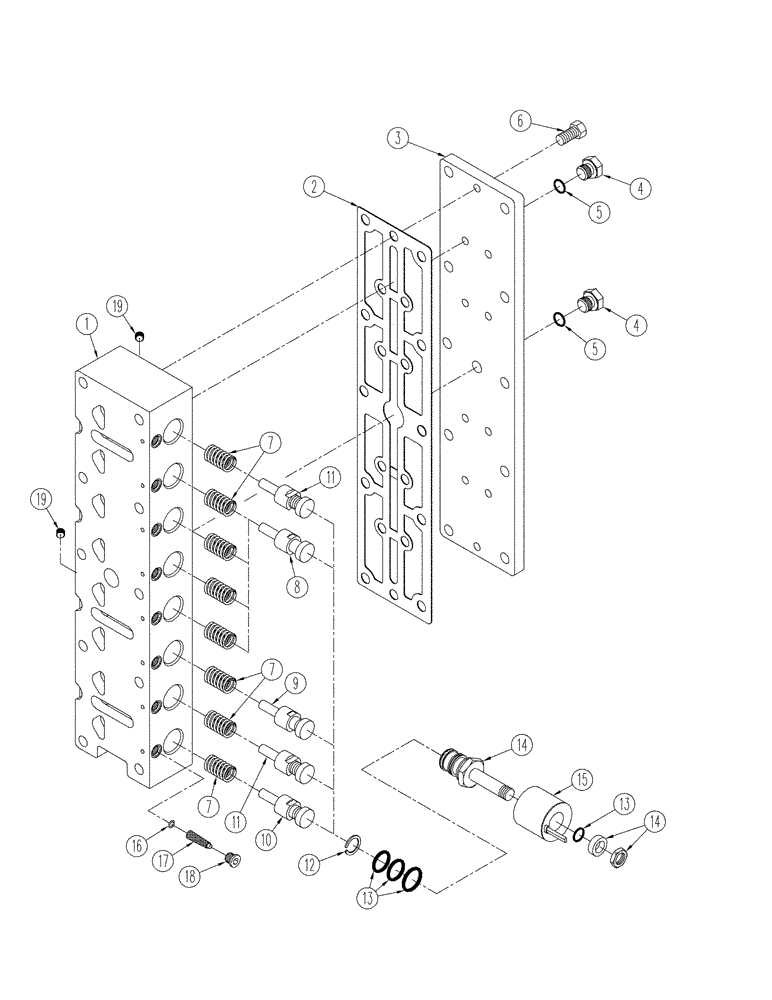

Схема запчастей Case IH STX325 - (06-42) - POWER SHIFT TRANSMISSION - RANGE SELECTOR VALVE (06) - POWER TRAIN
19
2
4
8
4
5
18
17
1
15
13
3
6
12
11
7
5
14
7
11
16
13
9
10
7
14
19

Артикул

Название

Примечание

Количество

370550A1

VALVE

Range Selector, Inc. 1 - 17

1шт.

1

370601A1

BODY

1шт.

2

428680A1

GASKET

1шт.

3

375459A1

COVER

1шт.

4

220064A1

PLUG,M14 x 1.5, ORB

Incl. 5

2шт.

5

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

6

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

10шт.

7

370604A1

SPRING

8шт.

8

370606A1

SPOOL

One-Groove

8шт.

9

395756A1

SPOOL

Two-Groove

1шт.

10

395757A1

SPOOL

Three-Groove

1шт.

11

395758A1

SPOOL

Four-Groove

1шт.

371737A1

SOLENOID VALVE

Three-Way, Inc. 12 - 15

1шт.

371737A1R

REMAN-SOLENOID

Three-Way, Inc. 12 - 15

1шт.

371737A1C

CORE-SOLENOID

Return Number

1шт.

12

428679A1

RING, SNAP

RING SNAP

8шт.

13

371738A1

O-RING KIT

O-Ring

8шт.

14

NSS

NOT SOLD SEPARAT

Valve, Electric

8шт.

15

371739A1

COIL

8шт.

16

428676A1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

Filter

8шт.

17

87409404

FILTER

8шт.

18

428678A1

PLUG

With O-Ring

8шт.

19

398299A1

ORIFICE

2шт.

398441A1

GASKET KIT

Transmission Repair, Short, See Figure(s): 06-29 - 06-42, Inc. 2, Serial Range: -JEE0104001

1шт.

87432749

GASKET KIT

Transmission Repair, Short, See Figure(s): 06-29 - 06-42, Inc. 2, Start Serial: JEE0104001

1шт.

87432750

GASKET KIT

Transmission Repair, See Figures 06-29 - 06-40, Inc. 2, 3, 16

1шт.

Выбрано товаров: 26
