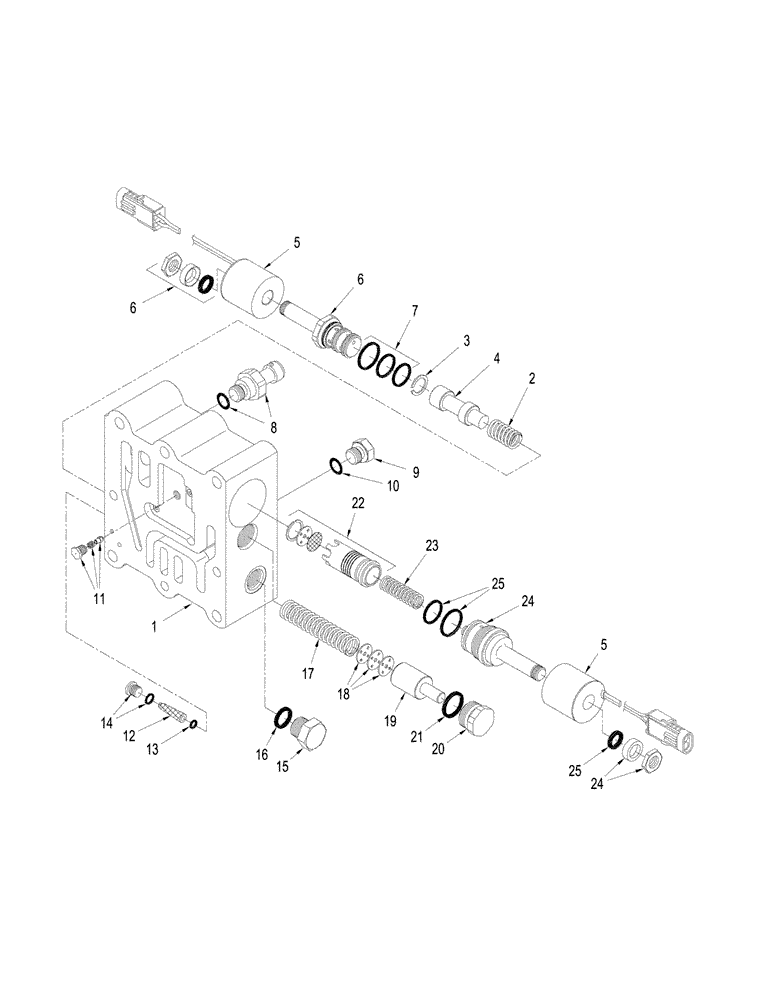

Запчасти Case IH STX325 (06-41[01]) - POWER SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY, ASN JEE0104001 (06) - POWER TRAIN

87431403

VALVE

Regulator, Inc. 1 - 7 & 9 - 25

1шт.

87431403R

REMAN-HYD VALVE

STX275, STX325 AFTER S/N JEE0099501, POWER SHIFT TRANSMISSION - REGULATOR VALVE ASSEMBLY, ASN JEE0104001

1шт.

87431403C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

370596A1

SPRING

1шт.

3

428679A1

RING, SNAP

RING SNAP

1шт.

4

370597A1

SPOOL

1шт.

371737A1

SOLENOID VALVE

3-way, Inc. 5 - 7

1шт.

371737A1R

REMAN-SOLENOID

3-way, Inc. 5 - 7

1шт.

371737A1C

CORE-SOLENOID

Return Number

1шт.

5

371739A1

COIL

2шт.

6

NSS

NOT SOLD SEPARAT

Pilot Assy.

1шт.

7

371738A1

O-RING KIT

O-Ring

1шт.

8

404450A1

SENSOR

Pressure

1шт.

9

220064A1

PLUG,M14 x 1.5, ORB

Incl. 10

1шт.

10

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

87431412

VALVE

Relief

1шт.

12

87409404

FILTER

Conical

1шт.

13

428676A1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

14

428678A1

PLUG

Inc. O-Ring

1шт.

15

220066A1

PLUG,M18 x 1.5, ORB

Incl. 16

1шт.

16

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

17

398443A1

SPRING

1шт.

18

398445A1

SHIM,0.79mm Thk

1шт.

19

398444A1

VALVE

Spool

1шт.

20

87431407

PLUG

Inc. 21

1шт.

21

87431408

O-RING

1шт.

22

87431405

SPOOL

Main Pressure

1шт.

23

87431406

VALVE SPRING

1шт.

87431409

VALVE

PMW Solenoid, Inc. 5, 24, 25

1шт.

24

87431410

VALVE

Pilot

1шт.

25

87431411

O-RING KIT

O-Ring

1шт.
