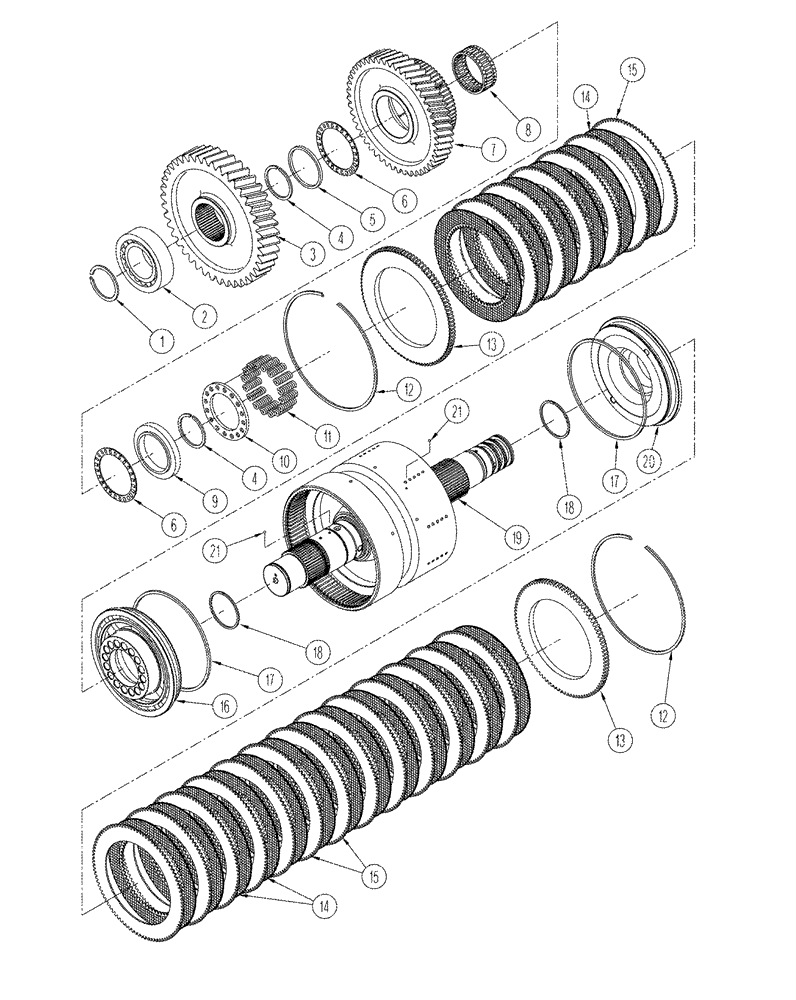

Запчасти Case IH STX325 (06-37) - POWER SHIFT TRANSMISSION - FOURTH SHAFT ASSEMBLY (06) - POWER TRAIN

87431399

SHAFT ASSY.

Fourth, Inc. 1 - 21, See Figure 06-38

1шт.

Repair and exchange COMPLETE TRANSMISSION available - call Avatar Components, 1-800-453-3544, ext. 122

1шт.

1

427674A1

SNAP RING

2.50 mm

1шт.

1

427675A1

SNAP RING

2.60 mm

1шт.

1

427676A1

SNAP RING

2.70 mm

1шт.

1

427678A1

SNAP RING

2.80 mm

1шт.

1

427679A1

SNAP RING

2.90 mm

1шт.

1

427680A1

SNAP RING

3.00 mm

1шт.

2

428675A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

2шт.

3

362610A1

GEAR

Drive

1шт.

4

S5040S00F

RING

4шт.

5

362611A1

SPACER

3шт.

6

353060A1

THRUST BEARING

4шт.

7

362612A1

GEAR

Driven

1шт.

8

362613A1

NEEDLE BEARING

1шт.

9

362614A1

THRUST WASHER

1шт.

10

362615A1

PLATE

Spring Retainer

1шт.

11

362616A1

SPRING

16шт.

12

359235A1

RING, SNAP

RING SNAP

2шт.

13

362617A1

PLATE

Clutch End

2шт.

14

362618A1

CLUTCH DISC

CLUTCH DISK

19шт.

15

362628A1

CLUTCH DISC

CLUTCH DISK 2.4 mm ( 0.094 in.), If Used

1шт.

15

362629A1

CLUTCH DISC

CLUTCH DISK 2.6 mm (0.102 in.), If Used

1шт.

16

364822A1

PISTON

1шт.

17

87431400

RING

Seal

2шт.

18

S4410S00F

RING

2шт.

19

364824A1

SHAFT

Drum

1шт.

20

364825A1

PISTON

1шт.

21

S14701960

BALL,3.968mm OD

2шт.

87432750

GASKET KIT

Transmission Repair, See Figures 06-29 - 06-40, Inc. 18

1шт.
