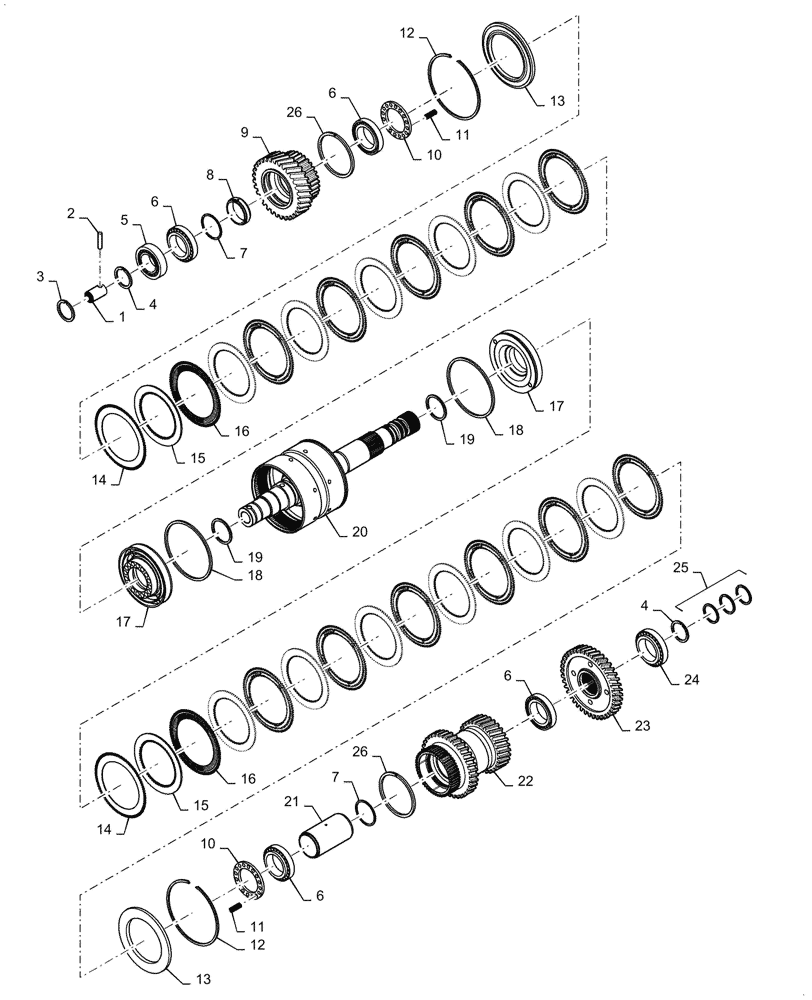

Запчасти Case IH STX325 (06-35) - POWER SHIFT TRANSMISSION - SECOND SHAFT ASSEMBLY (06) - POWER TRAIN

87431395

SHAFT

Second, Incl 1 - 25

1шт.

Repair and Exchange COMPLETE TRANSMISSION Available - Call Avatar Components, 1-800-453-3544, ext. 122

1шт.

1

428673A1

SPLINED COUPLING

Pump Sleeve

1шт.

2

428674A1

DOWEL

1шт.

3

352816A1

RING, SNAP

3mm Thk

1шт.

4

352378A1

RING, SNAP

2.5mm Thk

1шт.

4

352394A1

RING, SNAP

2.6mm Thk

1шт.

4

352397A1

RING, SNAP

2.7mm Thk

1шт.

4

352400A1

RING, SNAP

2.8mm Thk

1шт.

4

352815A1

RING, SNAP

2.9mm Thk

1шт.

4

352816A1

RING, SNAP

3mm Thk

1шт.

5

428183A1

ROLLER BEARING,55mm ID x 95mm OD x 29.2mm W

1шт.

6

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

4шт.

7

352818A1

SHIM,0.15mm Thk

1шт.

7

352819A1

SHIM,0.18mm Thk

1шт.

7

352820A1

SHIM,0.20mm Thk

1шт.

7

352821A1

SHIM,0.25mm Thk

1шт.

7

352822A1

SHIM,0.30mm Thk

1шт.

7

352823A1

SHIM,0.50mm Thk

1шт.

8

359260A1

SPACER

2R Bearing

1шт.

9

87431396

GEAR

2R

1шт.

10

352827A1

PLATE

Retaining Spring

2шт.

11

352828A1

SPRING

Return

32шт.

12

352829A1

RING, SNAP

2шт.

13

87431390

CLUTCH PLATE

2шт.

14

352831A1

CLUTCH DISC

Faced

4шт.

15

S2080S00F

CLUTCH DISC,2.4mm Thk

1шт.

If Used

1шт.

15

S2090S00F

CLUTCH DISC,2.1mm Thk

1шт.

If Used

1шт.

16

352832A1

CLUTCH DISC

Faced

11шт.

17

352833A1

PISTON

7", Clutch

2шт.

18

87431391

RING

Seal

2шт.

19

S2610S00F

RING

Seal

2шт.

20

359280A1

SHAFT

Drum

1шт.

21

362423A1

SPACER

2F Bearing

1шт.

22

362542A1

GEAR

2M

1шт.

23

362543A1

GEAR

Driven

1шт.

24

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

1шт.

25

S3070S00F

RING

Seal

4шт.

26

87431394

RING

Seal, Start Serial: JEE0104001

1шт.

87432750

GASKET KIT

Transmission Repair, Inc. 18, See Figure(s): 06-37 - 06-48

1шт.
