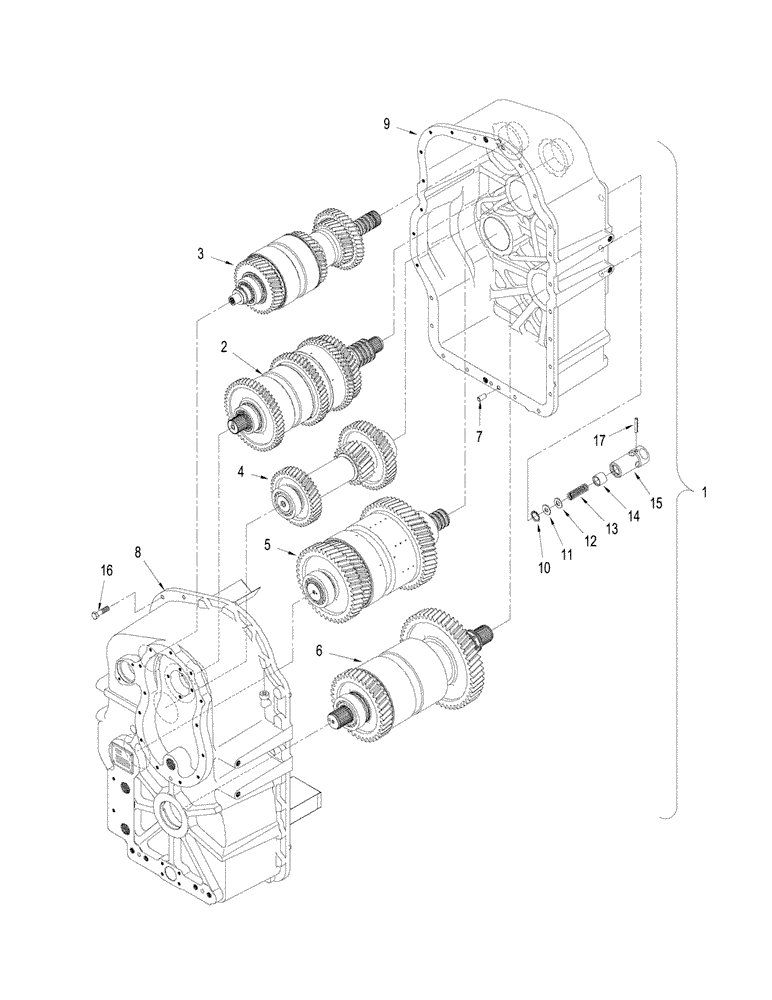

Запчасти Case IH STX325 (06-32) - POWER SHIFT TRANSMISSION - HOUSING AND CLUTCHES (06) - POWER TRAIN

403066A1

TRANSMISSION

TRANSMISSION, 8.5C Yoke, 16 SPD

1шт.

87627458R

REMAN-TRANSMISSION

TRANSMISSION, 8.5C Yoke, 16 SPD

1шт.

87627458C

CORE-TRANSMISSION

Return Part Number, PS3

1шт.

87416587

TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C

1шт.

87627456R

REMAN-TRANSMISSION

TRANSMISSION, Closed Loop PS3 - 8C Yoke

1шт.

87627456C

CORE-TRANSMISSION

Return Part Number PS3

1шт.

2

87431389

SHAFT

Input, See Figure 06-33, 06-34

1шт.

3

87431395

SHAFT

Second, See Figure 06-35

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft Assy., Third, See Figure 06-36, Order Components

1шт.

5

87431399

SHAFT ASSY.

Fourth, See Figures 06-37, 06-38

1шт.

6

87431402

SHAFT ASSY.

Fifth, See Figures 06-39, 06-40

1шт.

7

427530A1

DOWEL,14mm OD x 31mm L

2шт.

8

370636A1

HOUSING

Rear

1шт.

9

375486A1

HOUSING

Front

1шт.

REMAN TRANSMISSION Available - P/N 87627458R Before S/N JEE0104001, P/N 87627456R for S/N JEE0104001 & After

1шт.

10

800-2112

SNAP RING,M12, Int

4шт.

11

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

12

370542A1

SHIM

4шт.

13

370543A1

SPRING

4шт.

14

370544A1

SPOOL

4шт.

15

370545A1

CAP

4шт.

16

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

M12 x 45

25шт.

17

838-1318

LOCK PIN,3mm OD x 10mm L, Slotted

4шт.
