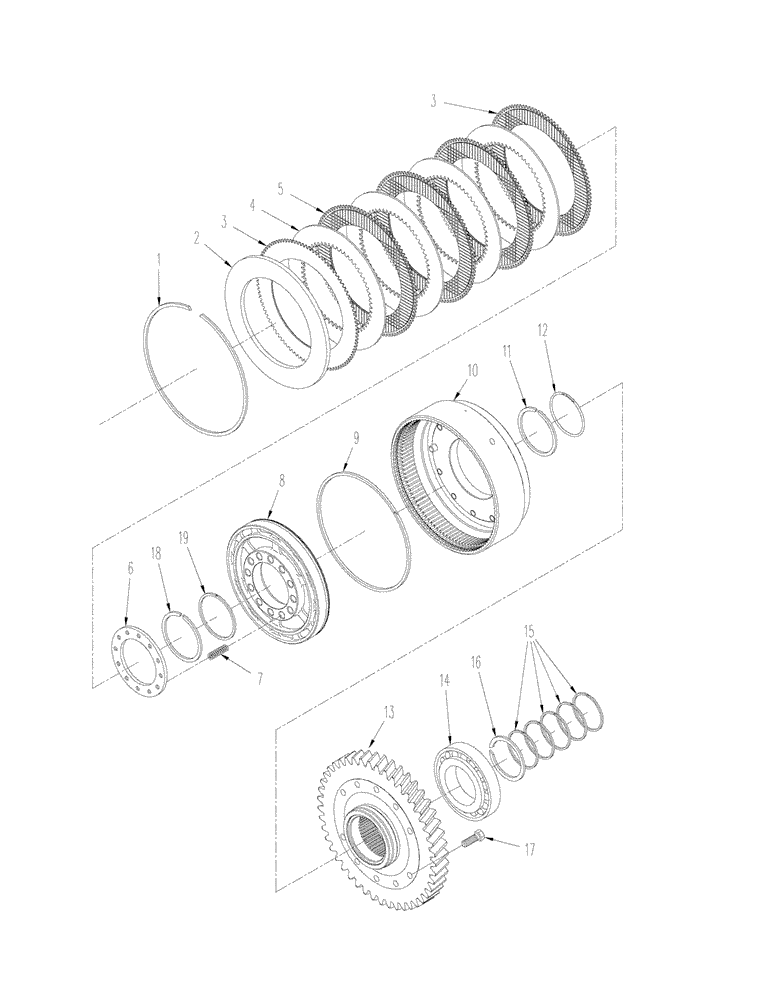

Запчасти Case IH STX325 (06-21) - MANUAL SHIFT TRANSMISSION - INPUT SHAFT ASSEMBLY (06) - POWER TRAIN

428120A1

SHAFT ASSY.

Input, Also See Figure 06-20, Inc. 1 - 19

1шт.

1

428108A1

RING, SNAP

RING SNAP

1шт.

2

428104A1

PLATE

1шт.

3

428110A1

CLUTCH DISC

CLUTCH DISK Faced

2шт.

4

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK 2.4 mm (0.094 in.), If Used

1шт.

4

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK 2.1 mm (0.083 in.), If Used

1шт.

5

427534A1

CLUTCH DISC

CLUTCH DISK Faced

3шт.

6

428109A1

PLATE

Spring Return

1шт.

7

S2640S00F

SPRING

12шт.

8

428111A1

PISTON

Clutch

1шт.

9

S2630S00F

RING

Seal

1шт.

10

428106A1

DRUM

High / Low Clutch

1шт.

11

428163A1

RING, SNAP

RING SNAP

1шт.

12

428107A1

O-RING

1шт.

13

428105A1

GEAR

Drive

1шт.

14

428103A1

BEARING ASSY,65mm ID x 140mm OD x 51mm W

2шт.

15

427674A1

SNAP RING

2.5 mm

1шт.

15

427675A1

SNAP RING

2.6 mm

1шт.

15

427676A1

SNAP RING

2.7 mm

1шт.

15

427678A1

SNAP RING

2.8 mm

1шт.

15

427679A1

SNAP RING

2.9 mm

1шт.

15

427680A1

SNAP RING

3.0 mm

1шт.

16

428102A1

SEALING RING

5шт.

17

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

18

S5040S00F

RING

Snap

1шт.

19

S4410S00F

RING

Locking

1шт.
