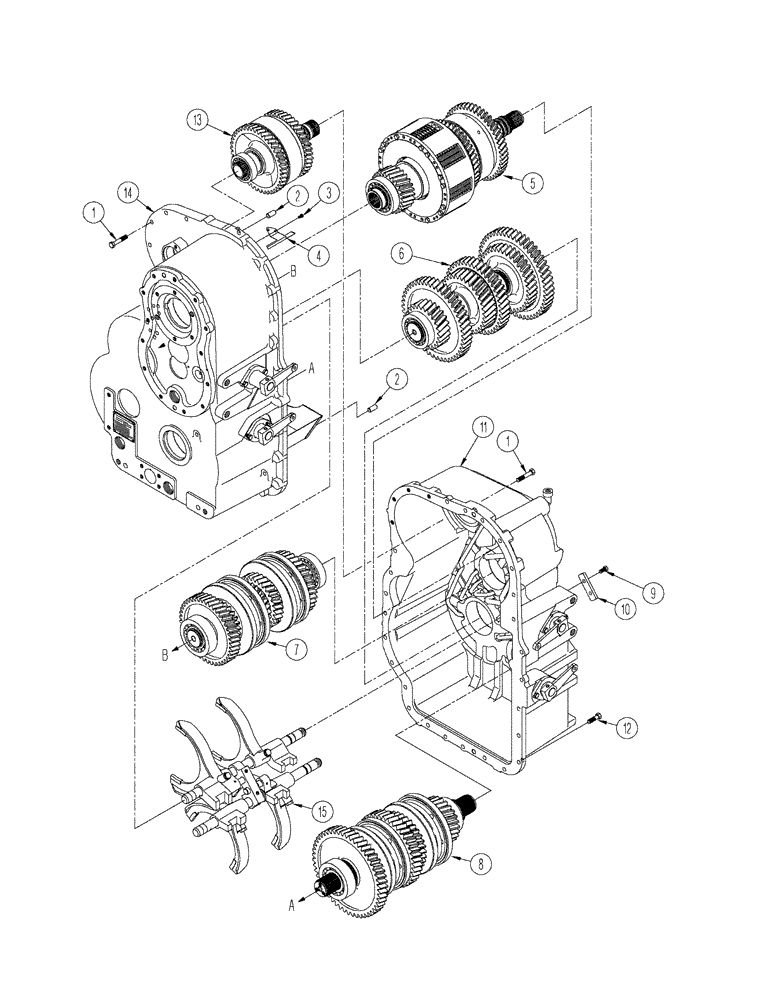

Запчасти Case IH STX325 (06-18) - MANUAL SHIFT TRANSMISSION - SHAFT ASSEMBLIES AND SHIFTER FORKS (06) - POWER TRAIN

1

514-843

BOLT,Hex, M12 x 1.25 x 60mm, Cl 8.8, Full Thd

13шт.

2

427530A1

DOWEL,14mm OD x 31mm L

2шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

4

427577A1

TROUGH

Reverse Idler

1шт.

5

428120A1

SHAFT ASSY.

Input, See Figures 06-20, 06-21

1шт.

6

427681A1

SHAFT ASSY.

Fourth, See Figure 06-24

1шт.

7

427647A1

SHAFT ASSY.

Third, See Figure 06-23

1шт.

8

427690A1

SHAFT ASSY.

Fifth, See Figure 06-25

1шт.

9

514-703

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

428138A1

PLATE

1шт.

11

427588A1

HOUSING

Front

1шт.

12

514-830

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

16шт.

13

428121A1

SHAFT ASSY.

Second, See Figure 06-22

1шт.

14

427538A1

HOUSING

Rear

1шт.

15

428130A1

SHIFTER FORK

1-R Gears, See Figure 06-19

1шт.

15

428131A1

SHIFTER FORK

2-3 Gears, See Figure 06-19

1шт.

15

428133A1

SHIFTER FORK

C-D Range, See Figure 06-19

1шт.

15

428132A1

SHIFTER FORK

A-B Range, See Figure 06-19

1шт.
