Запчасти Case IH STX325 (06-11[03]) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, WITH ACCUSTEER, BSN JEE0104001 (06) - POWER TRAIN

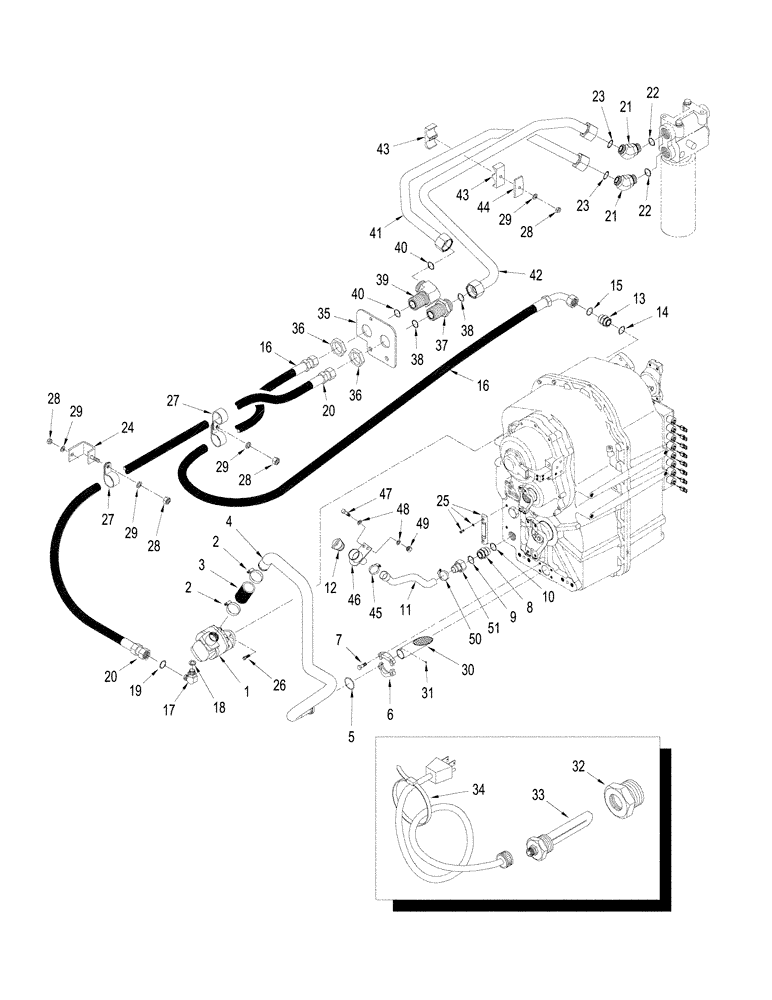

Схема запчастей Case IH STX325 - (06-11[03]) - TRANSMISSION - LUBRICATION, WITH POWER SHIFT TRANSMISSION, WITH ACCUSTEER, BSN JEE0104001 (06) - POWER TRAIN
30
11
40
49
45
3
2
1
16
15
28
13
23
6
14
41
43
17
44
7
27
22
51
18
29
23
2
48
40
27
38
8
39
29
5
12
29
25
36
28
21
24
16
28
50
4
29
21
43
10
36
46
34
26
38
31
22
20
42
32
20
28
33
35
47
37
19
9

Артикул

Название

Примечание

Количество

1

370546A1

PUMP

Oil

1шт.

1

84176413R

REMAN-HYD PUMP

Reman for New PN 370546A1

1шт.

1

84176413C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

2

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

2шт.

3

31-2427

HOSE,2.00" ID x 6.00"

102 mm (4 in.), Cut From 1-4568

1шт.

4

320382A1

TUBE

1шт.

5

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

6

A14141

FLANGE

2шт.

7

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

8

700-133

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Inc. 8 and 9

1шт.

9

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

10

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

11

360285A1

TUBE,31.8 mm OD, 622, 57 mm Length

Transmission Fill

1шт.

12

325737A1

CAP

1шт.

13

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 14 and 15

1шт.

14

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

16

374549A2

HOSE ASSY.

699 mm (27.5 inches)

1шт.

17

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 18 and 19

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

374550A1

HOSE ASSY.

Outlet, 1978 mm (78 in.)

1шт.

21

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 22 and 23

2шт.

22

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

23

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

24

434574A1

BRACKET

2шт.

25

L116247

GAUGE

Inc. Hardware

1шт.

26

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

27

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

6шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

30

370551A1

TUBE

1шт.

31

S14701960

BALL,3.968mm OD

Steel

1шт.

186135A1

KIT

Transmission Heater, Inc. 32 - 34

1шт.

32

367930A1

ADAPTER,M42 x 2 NPT

1шт.

33

385486A1

HEATER ASSY.

With Cord Set, 300 W

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

5шт.

35

374530A1

BRACKET

1шт.

36

701-908

BHD LOCK NUT,1-7/16" - 12

M25

2шт.

37

701-116

UNION,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x blkhd, Inc. 38

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

39

701-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x blkhd, Inc. 40

1шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

41

416506A1

TUBE

1шт.

42

416508A1

TUBE

1шт.

43

50-2534T1

CLAMP

2шт.

44

50-2533T1

PLATE

1шт.

45

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

1шт.

46

414480A2

TUBE

Transmission Fill

1шт.

47

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

48

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

49

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

50

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

51

429193A1

TUBE

Connector

1шт.

Выбрано товаров: 54
