Запчасти Case IH STX325 (06-06) - WHEELS SINGLE AND DUALS WITH SPACERS (06) - POWER TRAIN

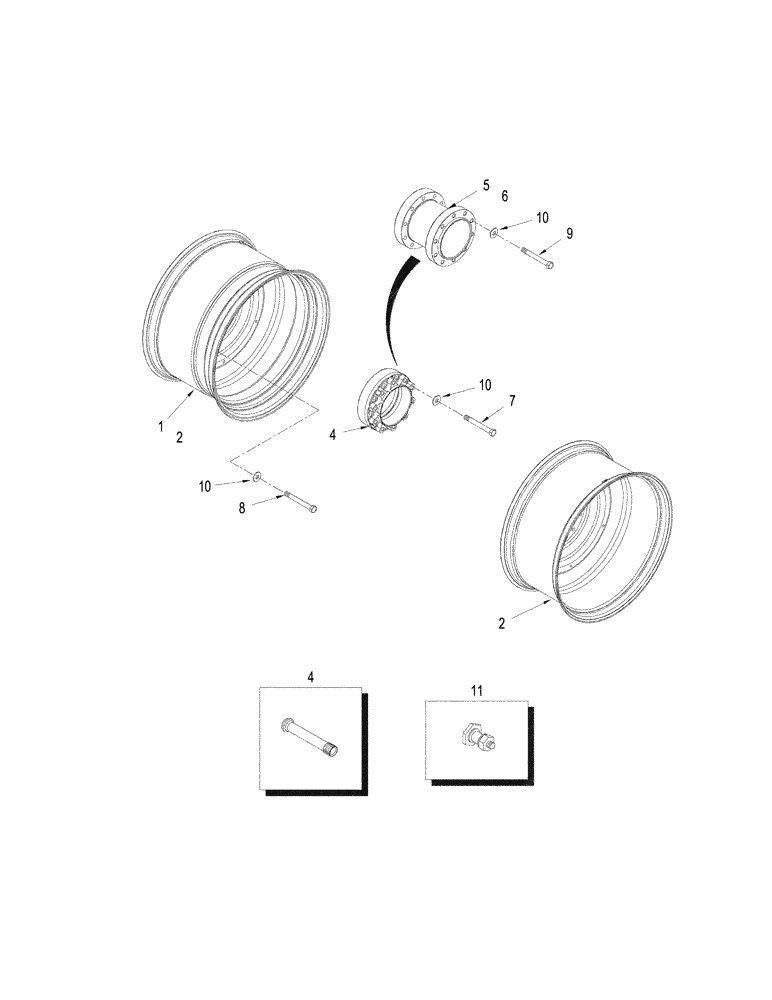

Схема запчастей Case IH STX325 - (06-06) - WHEELS SINGLE AND DUALS WITH SPACERS (06) - POWER TRAIN
6
2
4
8
5
10
1
10
10
4
11
9
7
2

Артикул

Название

Примечание

Количество

1

193273A1

WHEEL

27 x 32, Single

1шт.

For Tires: 30.5L-32

1шт.

2

305792A1

RIM

MW23A x 42, Single or Dual

1шт.

For Tires: 710/70R42

1шт.

2

193300A2

RIM

MW23A x 38, Single or Dual

1шт.

For Tires: 650/85R38, 710/70R38, 710/65-38

1шт.

2

396113A1

RIM

WHEEL W16A x 46, Single or Dual

1шт.

For Tires: 480/80R46, 520/85R46, 18.4R46

1шт.

2

222665A1

WHEEL

W18A x 38, Single or Dual

1шт.

For Tires: 520/85R38, 20.8R38

1шт.

2

193857A1

WHEEL

W18A x 42, Single or Dual

1шт.

For Tires: 520/85R42, 20.8R42

1шт.

2

276687A1

WHEEL

MW20A x 42, Single or Dual

1шт.

For Tires: 620/70R42

1шт.

2

311352A1

WHEEL

28 x 42, Single or Dual

1шт.

For Tires: 850/55-42, 900/50R42

1шт.

2

403037A1

RIM

MW25 x 38, Single or Dual

1шт.

For Tires: 800/70R38

1шт.

2

196254A1

WHEEL

W13 x 46, Single or Dual

1шт.

For Tires: 420/80R46, 14.9R46

1шт.

2

221362A1

WHEEL

WH16A x 42, Single or Dual

1шт.

For Tires: 480/80R42, 18.4R42

1шт.

2

326630A1

WHEEL

W12 x 50, Single or Dual

1шт.

For Tires: 380/90R54

1шт.

2

87443702

WHEEL

46 x FDW20A, Single or Dual

1шт.

For Tires: 620/70R46

1шт.

3

A20058

VALVE STEM

1шт.

4

405822A1

SPACER

127 mm (5 in)

1шт.

5

405823A1

SPACER

254 mm (10 in)

1шт.

6

405824A1

SPACER

330 mm (13 in)

1шт.

7

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

10шт.

8

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

40шт.

9

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

10шт.

10

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

11

87352762

PLUG

Rim Hole, 5/8"

1шт.

Выбрано товаров: 35
