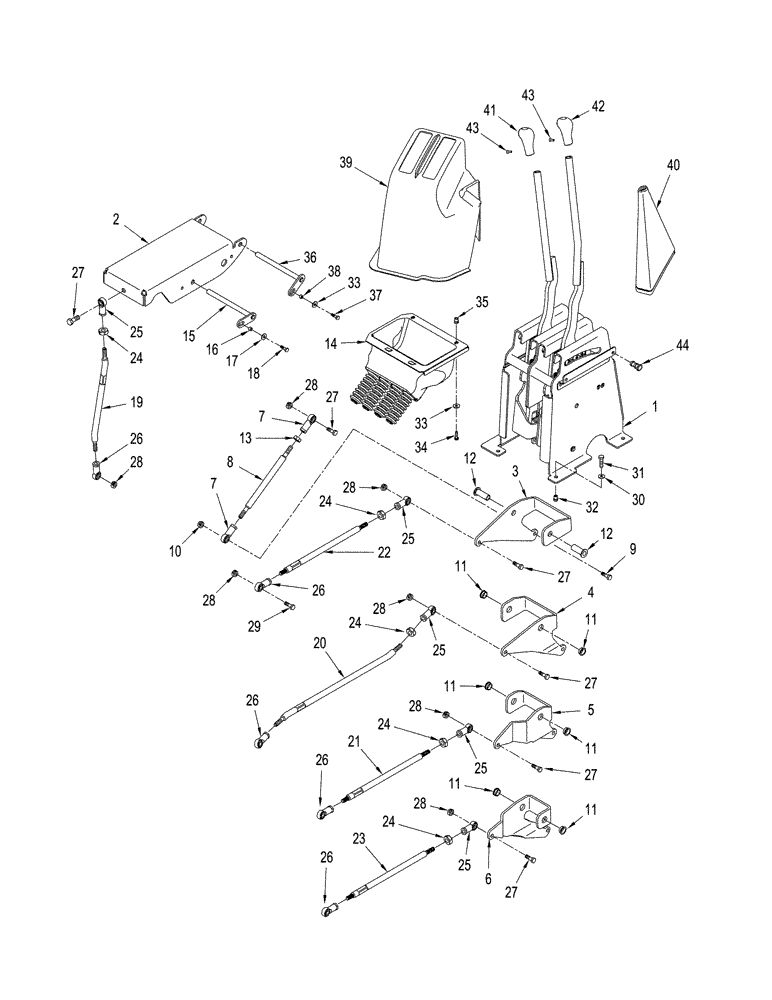

Запчасти Case IH STX325 (06-04) - TRANSMISSION SHIFT CONTROLS, MANUAL SHIFT TRANSMISSION (06) - POWER TRAIN

1

REF

INSTRUCTION

Shifter Assy., See Figure 06-05

1шт.

387647A1

BELLCRANK

Incl. 2 - 18

1шт.

2

396435A2

SUPPORT

1шт.

3

396444A1

CRANK

Linkage Pivot

1шт.

4

396445A1

CRANK

Linkage Pivot

1шт.

5

396446A1

CRANK

Linkage Pivot

1шт.

6

396447A1

CRANK

Linkage Pivot

1шт.

7

402749A1

BALL JOINT

Female - RH

8шт.

8

431198A1

ROD

4шт.

10

403749A1

LOCK NUT,M10 x 1.5, Class 8.8

M10

4шт.

11

431052A1

BUSHING

6шт.

12

398870A1

BUSHING

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

14

412355A1

BELLOWS

1шт.

15

430415A1

PIN ASSY.,12.7mm OD x 181mm L

1шт.

16

430546A1

SPACER

1шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

18

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

431202A1

ROD

Inc. 19, 24 - 26

1шт.

431201A1

ROD

Inc. 20, 24 - 26

1шт.

431203A1

ROD

Inc. 21, 24 - 26

1шт.

431200A1

ROD

Inc. 22, 24 - 26

1шт.

431199A1

ROD

Inc. 23, 24 - 26

1шт.

19

NSS

NOT SOLD SEPARAT

Rod, 288 mm (11 in.)

1шт.

20

NSS

NOT SOLD SEPARAT

Rod, 597 mm (23-1/2 in.)

1шт.

21

NSS

NOT SOLD SEPARAT

Rod, 589 mm ( 23 in.)

1шт.

22

NSS

NOT SOLD SEPARAT

Rod, 391 mm ( 15 in.)

1шт.

23

NSS

NOT SOLD SEPARAT

Rod, 436 mm ( 17 in.)

1шт.

24

NSS

NOT SOLD SEPARAT

Nut

1шт.

25

402749A1

BALL JOINT

Female - RH

1шт.

26

404639A1

BALL JOINT

Female - LH

1шт.

28

403749A1

LOCK NUT,M10 x 1.5, Class 8.8

M10; 8

13шт.

29

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9 x 16 x 1.6 mm

5шт.

32

404287A1

INSERT,M6

5шт.

33

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

34

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

35

404287A1

INSERT,M6

2шт.

36

430415A1

PIN ASSY.,12.7mm OD x 181mm L

1шт.

37

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

38

430546A1

SPACER

1шт.

39

410846A3

SHROUD

, Serial Range: -JEE0104001

1шт.

39

410846A4

SHROUD

, Start Serial: JEE0104001

1шт.

Also Order (1) 87426775 Shroud Bracket and (2) 369929A1 Christmas Tree Fastener.

1шт.

40

412354A2

BELLOWS

2шт.

41

418038A1

GRIP

1шт.

42

418039A1

GRIP

1шт.

43

871-5012

HEX SOC SCREW,Flat Hd, CSK, M5 x 12mm, Cl 10.9

2шт.

44

369929A1

FASTENER

Christmas Tree

2шт.

31

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

5шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

27

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.
