(05-12) - ACCUGUIDE - MANIFOLD / STEERING VALVE & MOUNTING

Запчасти Case IH STX325 (05-12) - ACCUGUIDE - MANIFOLD / STEERING VALVE & MOUNTING (05) - STEERING

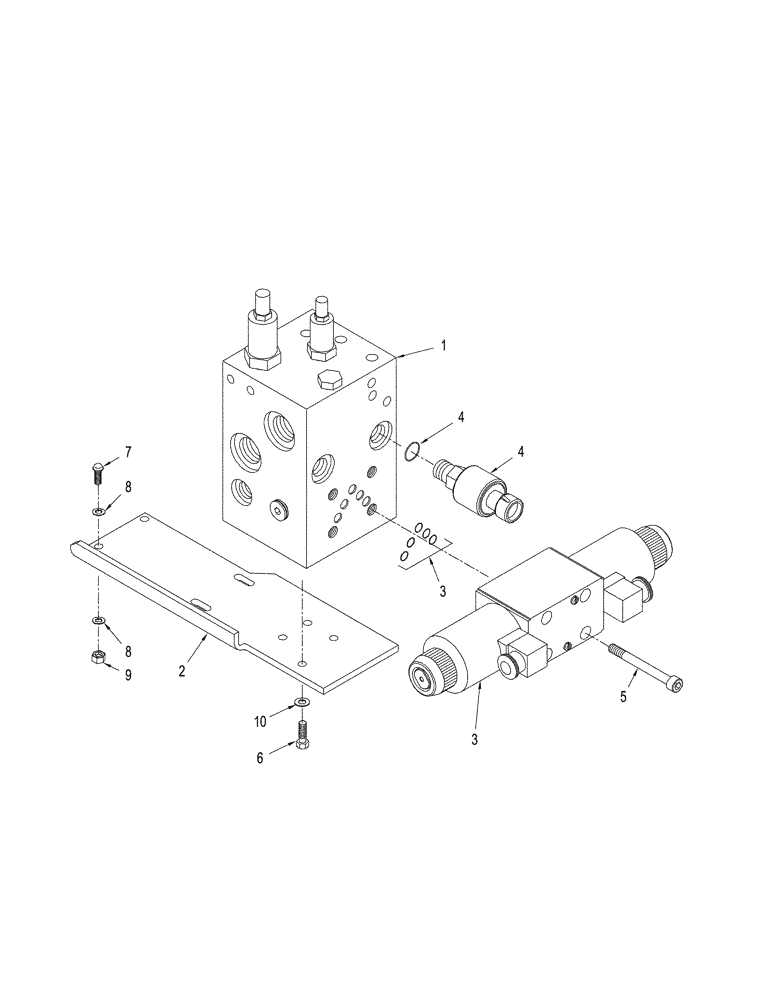

Схема запчастей Case IH STX325 - (05-12) - ACCUGUIDE - MANIFOLD / STEERING VALVE & MOUNTING (05) - STEERING
10
2
9
6
4
3
8
1
4
8
3
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87429542

MANIFOLD

1шт.

2

87311237

BRACKET

Mounting

1шт.

3

87429544

VALVE

Steering Guidance

1шт.

4

87428328

PRESSURE SWITCH

Pressure, 3000 psi, Includes P/N 165202 O-Ring

1шт.

5

864-6040

HEX SOC SCREW,M6 x 40mm, Cl 8.8

4шт.

7

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

892-11010

LOCK WASHER,M10

4шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

Flg, M10 x 30, CL10.9

4шт.
