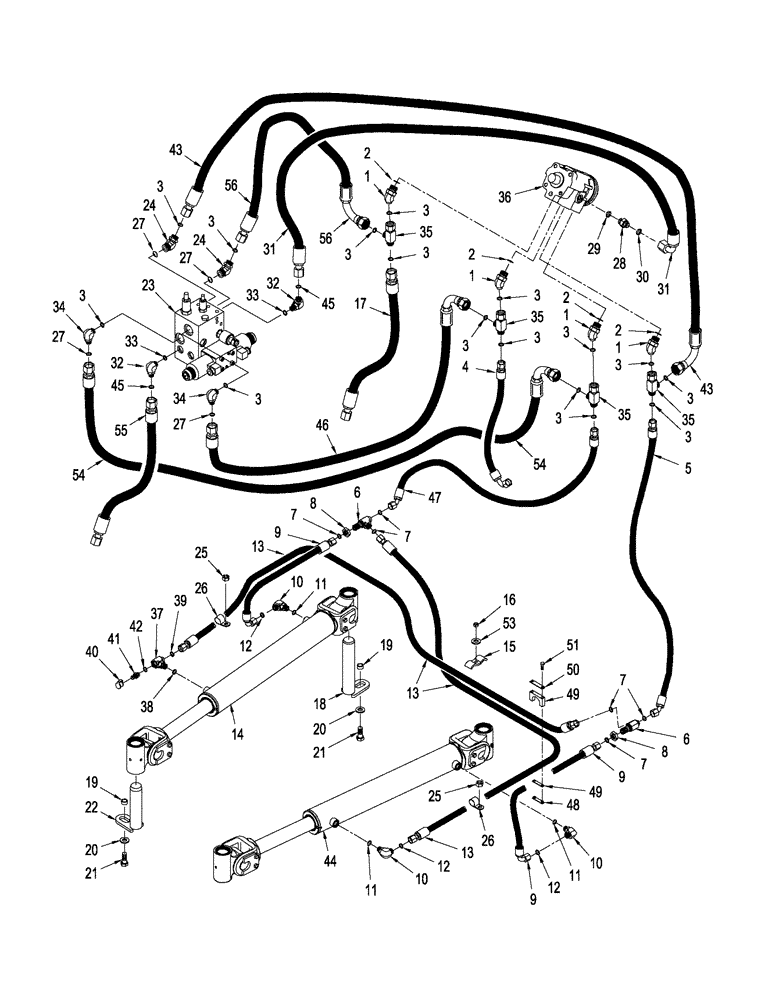

Запчасти Case IH STX325 (05-10) - ACCUGUIDE - HYDRAULIC, STEERING, WITHOUT ACCUSTEER (05) - STEERING

1

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1 fc sl x 22 or, Inc. 2 and 3

4шт.

2

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

3

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

15шт.

4

327473A2

HOSE

1727 mm (68 in.), Supply, From Priority Valve

1шт.

5

394226A1

HOSE

2311 mm (91 in.), RH Steering Cylinder

1шт.

6

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Inc. 7

2шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

8

701-903

NUT,13/16" - 16

2шт.

9

367244A1

HOSE,12.7mm ID x 550mm L

550 mm (21-1/2 in.)

2шт.

10

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 11 and 12

3шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

13

352114A1

HOSE

1460 mm (57 in.)

2шт.

14

410661A1

CYLINDER

Articulation, without Sensor, See Figure 05-02

1шт.

15

242563A1

CLAMP

1шт.

16

829-1412

NUT,M12, Cl 10.9

1шт.

17

390574A1

HOSE ASSY.

584 mm (23 in), Return, Steering Control to Piston Pump

1шт.

18

360493A1

PIN

2шт.

19

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

20

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

21

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

22

256295A1

PIN

2шт.

23

REF

INSTRUCTION

Valve, Manifold / Steering, See Figure 05-12

1шт.

24

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

45, 1 fc sl x 7/8 or, Inc. 3, 27

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

28

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 29 and 30

1шт.

29

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

87445156

HOSE ASSY.

1650 mm (65 in.)

1шт.

32

201-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/16" - 20 Male ORB

Incl. 45, 33

2шт.

33

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

34

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

90, 1 fc sl x 7/8 or, Inc. 3, 27

2шт.

35

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

1 fc sl x swl, Inc. 3

4шт.

36

373376A2

VALVE, CONTROL

Steering, See Figure 05-04 (01)

1шт.

37

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

M18 or, Inc. 38 and 39

1шт.

38

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Inc. 40 - 42

1шт.

40

H434163

DUST CAP

1шт.

41

NSS

NOT SOLD SEPARAT

Fitting

1шт.

42

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

43

87445153

HOSE ASSY.

457 mm (18 in)

1шт.

44

87418550

CYLINDER,Double Acting, 38.1mm Rod, 460.76mm Stroke

Assy., Articulation, with Sensor, See Figure: 05-11

1шт.

Steering Articulation Cylinder 87529570 Can Be Used To Replace and/or Upgrade Steering Cylinder 87418550. However, When Ordering Cylinder 87529570 Also Order 87552159 Adapter Harness To Connect Cyinder 87529570 To The Original Cab Harness.

1шт.

44

87529570

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod

Steering Articulation Cylinder, with Sensor, See Figure: 05-11 (01), If Used

1шт.

Steering Articulation Cylinder 87529570 Can Be Used To Replace and/or Upgrade Steering Cylinder 87418550. However, When Ordering Cylinder 87529570 Also Order 87552159 Adapter Harness To Connect Cyinder 87529570 To The Original Cab Harness.

1шт.

45

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

46

87445155

HOSE ASSY.

432 mm (17 in)

1шт.

47

408449A1

HOSE

2807 mm (110 1/2 in.), Left-Hand Steering Cylinder

1шт.

48

399431A1

PLATE

2шт.

49

399102A1

CLAMP

4шт.

50

279519A1

LARGE PLATE

PLATE, LARGE

1шт.

51

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

4шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

892-11012

LOCK WASHER,M12

1шт.

54

87445152

HOSE ASSY.

660 mm (26 in)

1шт.

55

87445157

HOSE ASSY.

1981 mm (78 in), Manifold to Priority Valve

1шт.

56

87445154

HOSE ASSY.

559 mm (22 in)

1шт.
