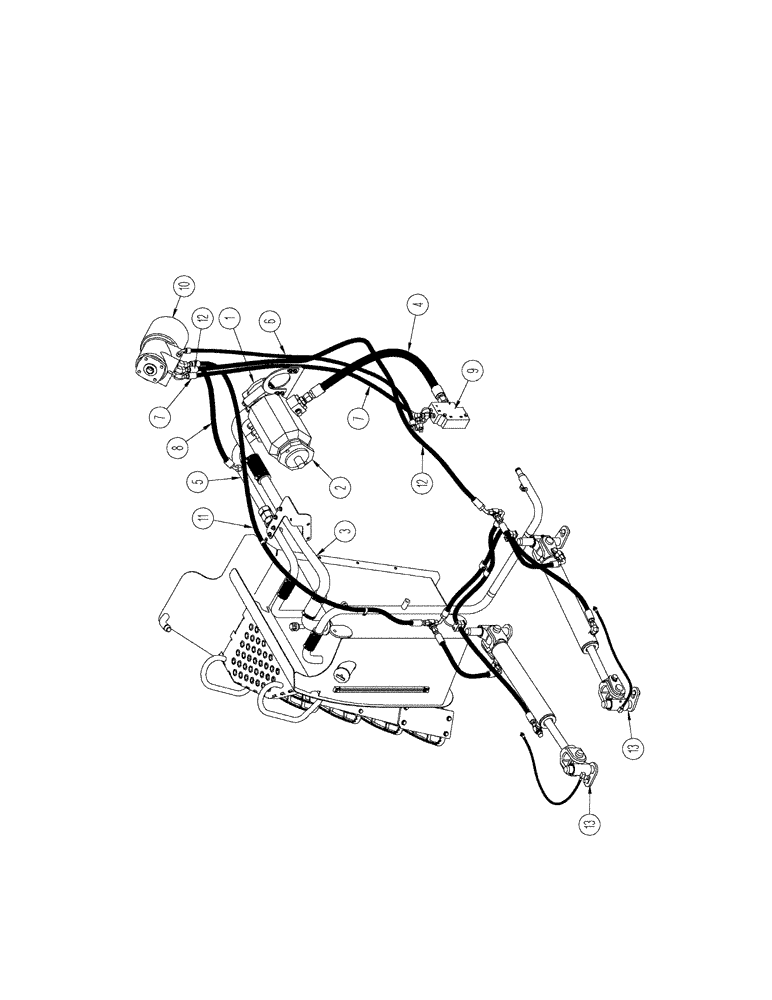

Запчасти Case IH STX325 (01-03[01]) - PICTORIAL INDEX - STEERING, ARTICULATION WITHOUT ACCUSTEER (00) - PICTORIAL INDEX

1

PUMP Gear, See Figure 08-22

1шт.

2

PUMP Piston, Standard Hydraulics, See Figure 08-17

1шт.

2

PUMP Piston, High Output Hydraulics, See Figure 08-21

1шт.

3

TUBE Gear Pump Supply, See Figures 08-14, 08-15

1шт.

4

HOSE Priority Valve Supply, See Figures 08-14, 08-15

1шт.

5

TUBE Piston Pump Supply, See Figures 08-14, 08-15

1шт.

6

HOSE Steering Load Sense, See Figure 05-01-01

1шт.

7

HOSE Steering Pump Supply, See Figures 08-14, 08-15

1шт.

8

HOSE Steering Return, See Figure 05-01 (01)

1шт.

9

VALVE Priority, Standard Hydraulics, See Figure 08-18

1шт.

9

VALVE Priority, High Output Hydraulics, See Figure 08-23

1шт.

10

VALVE Steering Control, See Figure 05-01 (01)

1шт.

11

HOSE Steering Control, To Left-Hand Articulation Cylinder, See Figure 05-01 (01)

1шт.

12

HOSE Steering Control, To Right-Hand Articulation Cylinder, See Figure 05-01 (01)

1шт.

13

CYLINDER Articulation, See Figure 05-02

1шт.
