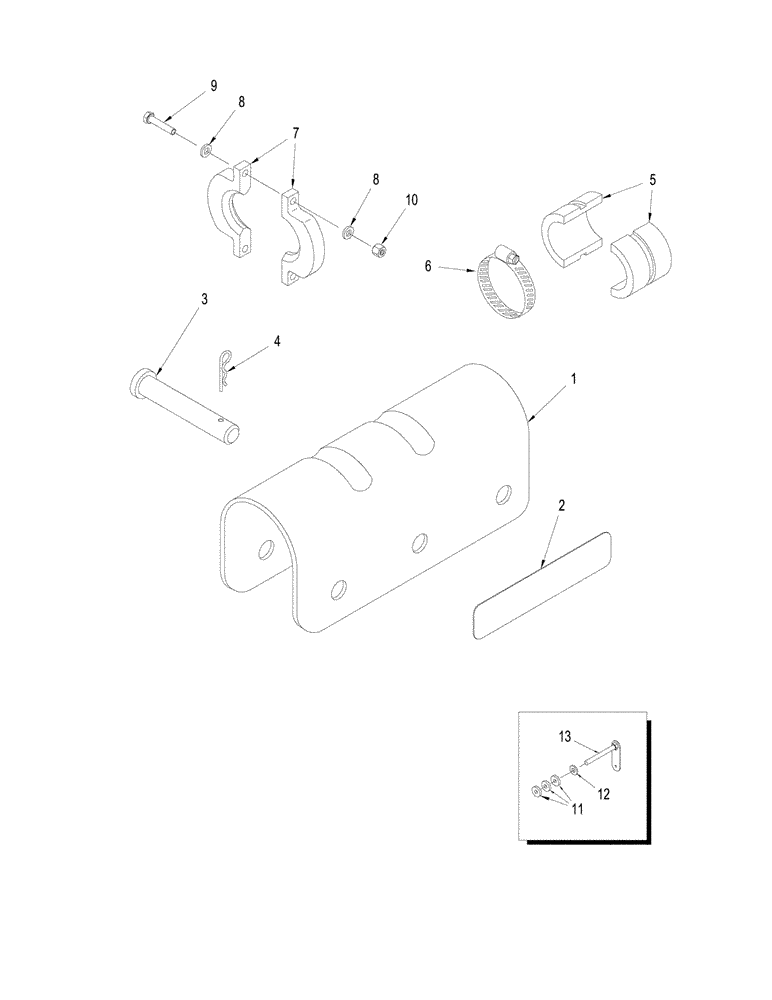

Запчасти Case IH STX325 (05-05) - ARTICULATION LOCKS (05) - STEERING

1

403813A3

STOP LOCK

Used with 51 mm Stop, Serial Range: -JEE0104511

1шт.

Without ACCUSTEER

1шт.

1

87437580

LOCKING DEVICE

Used with 51 mm Stop, Start Serial: JEE0104511

1шт.

Without ACCUSTEER

1шт.

1

403808A3

STOP LOCK

Used with 34 mm Stop, Serial Range: -JEE0104511

1шт.

Without ACCUSTEER

1шт.

1

87437577

LOCKING DEVICE

Used with 34 mm Stop, Start Serial: JEE0104511

1шт.

Without ACCUSTEER

1шт.

1

403805A3

STOP LOCK

Used without Stop, Serial Range: -JEE0104511

1шт.

Without ACCUSTEER

1шт.

1

403803A1

LOCK

Stop, 108 mm (4-1/4 in)

1шт.

With ACCUSTEER

1шт.

1

87433146

LOCK

Stop, 204 mm (8 in)

1шт.

With ACCUSTEER

1шт.

2

440518A1

DECAL

1шт.

3

427-8325

CLEVIS PIN,1/2" x 3 1/4"

1/2 x 3-1/2

1шт.

4

19-5400

PIN

1/8

1шт.

5

370867A2

STOP

Half, Articulation, 51 mm (Two required per cylinder)

1шт.

5

370864A2

STOP

Half, Articulation, 34 mm (Two required per cylinder)

1шт.

6

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

403825A1

KIT

Articulation Stop, 34 mm, Inc. 1 - 6

1шт.

403826A1

KIT

Articulation Stop, 51 mm, Inc. 1 - 6

1шт.

7

87415594

STOP,39mm ID

Half, Articulation, 12 mm (two required per cylinder)

1шт.

With ACCUSTEER

1шт.

8

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

9

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

2шт.

10

832-10406

NUT,M6 x 1, Cl 8

2шт.

11

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

3шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

13

406390A1

HANDLE

Mounting, Articulated Lock

1шт.
