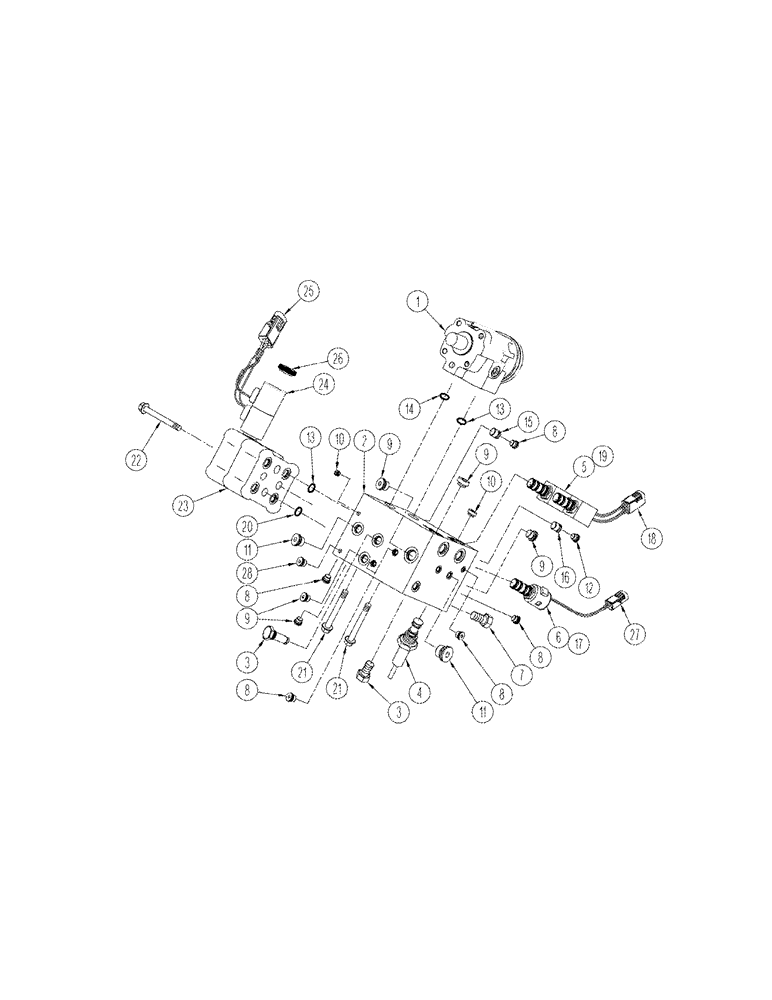

Запчасти Case IH STX325 (05-04[02]) - STEERING CONTROL VALVE, WITH ACCUSTEER (05) - STEERING

373378A3

VALVE, CONTROL

Steering, Incl 1 - 25

1шт.

1

374207A1

CONTROL VALVE

Steering, See Figure 05-04 (03)

1шт.

2

390297A2

VALVE

Incl 3 - 19

1шт.

3

389941A1

VALVE

Shuttle

2шт.

4

400598A1

BALANCE VALVE

Counter, See Ref 29 for Seal Kit

2шт.

5

389945A1

SOLENOID VALVE

See Ref 30 for Seal Kit

2шт.

6

389946A1

VALVE

Flow Control

1шт.

7

389947A1

VALVE

Dual Pilot Operated, See Ref 31 for Seal Kit

1шт.

8

86632547

PLUG,Hex, 5/16"-24 ORB

20шт.

9

71100209

PLUG,Hex Soc, 3/4"-16 ORB

5шт.

10

NSS

NOT SOLD SEPARAT

Plug, Expansion, Incl in 2

6шт.

11

9625178

PLUG,9/16" - 18 ORB

5шт.

12

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

13

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

5шт.

14

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

4шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

17

389948A1

COIL

1шт.

18

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

1шт.

19

389958A1

COIL

2шт.

20

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

21

390301A1

CAP

2шт.

22

390300A1

CAP

2шт.

23

373418A1

VALVE

Proportional, Incl 24 - 26

1шт.

24

87663399

COIL

1шт.

25

245487C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

26

402323A1

KNOB

1шт.

27

245482A1

CONNECTOR, ELEC

1шт.

28

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

29

374639A1

KIT

Internal Seals for 4, Not Illustrated

1шт.

30

389952A1

SEAL KIT

Internal Seals for 5, Not Illustrated

1шт.

31

397024A1

SEAL KIT

Internal Seals for 7, Not Illustrated

1шт.
