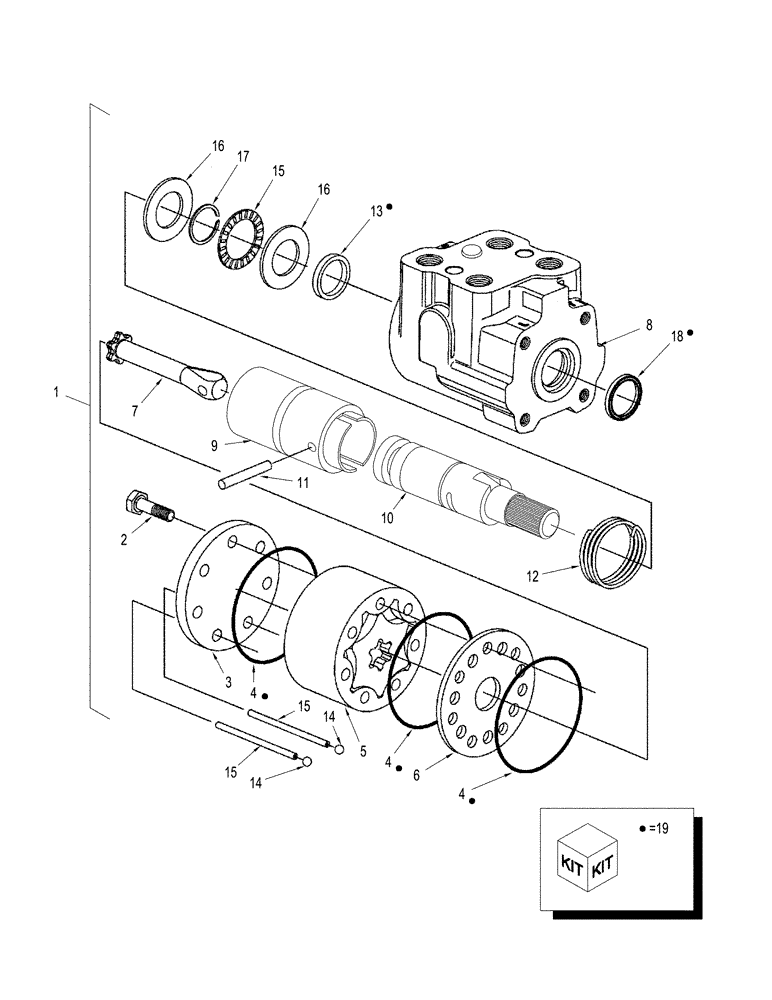

Запчасти Case IH STX325 (05-04[01]) - STEERING CONTROL VALVE, WITHOUT ACCUSTEER (05) - STEERING

1

373376A2

VALVE, CONTROL

Steering, Inc. 1 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

Screw, 12-Point

7шт.

3

NSS

NOT SOLD SEPARAT

Cover

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, 2-7/8 ID x 1/16

3шт.

5

NSS

NOT SOLD SEPARAT

Gerotor Set

1шт.

6

NSS

NOT SOLD SEPARAT

Plate, Wearing

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Drive

1шт.

8

NSS

NOT SOLD SEPARAT

Housing

1шт.

9

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

Spool

1шт.

11

298591A1

PIN

Centering

1шт.

12

8604430

SPRING

Centering

1шт.

13

NSS

NOT SOLD SEPARAT

Ball, 5/16; 24,CRS

1шт.

14

NSS

NOT SOLD SEPARAT

Ball, Check

1шт.

15

NSS

NOT SOLD SEPARAT

Pin, Roll

1шт.

16

NSS

NOT SOLD SEPARAT

Race, Bearing

2шт.

17

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

18

NSS

NOT SOLD SEPARAT

Input

1шт.

19

298612A1

SEAL KIT

Seal

1шт.
