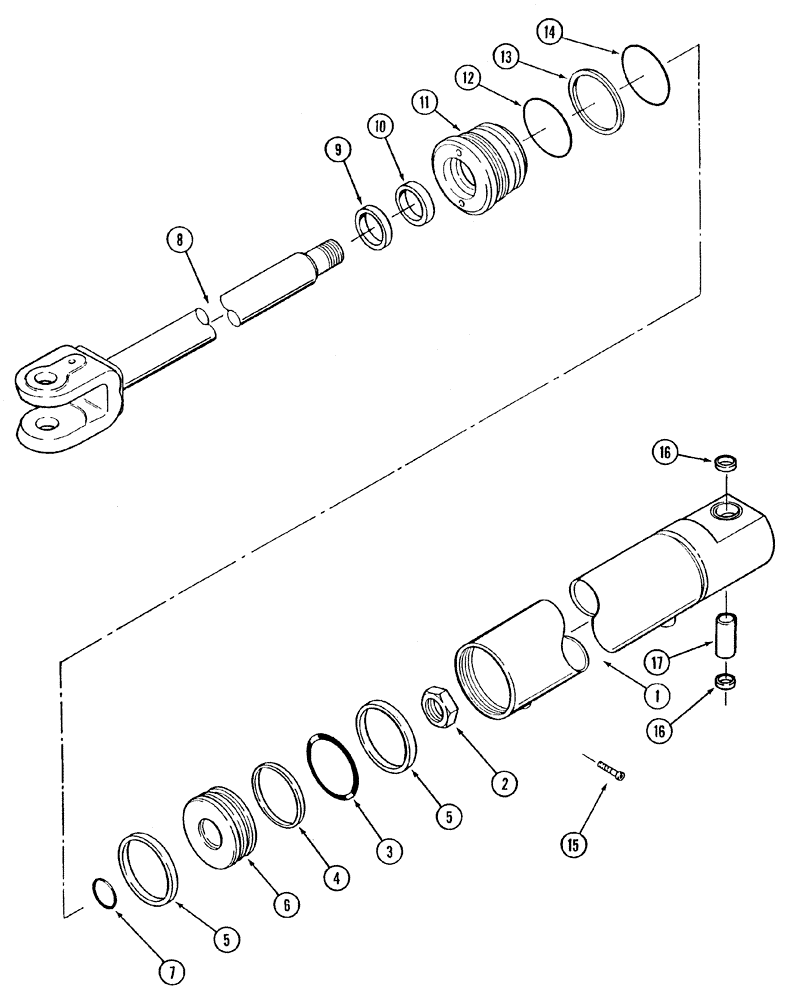

Запчасти Case IH STX325 (05-03[03]) - CYLINDER ASSY - STEERING, WITHOUT SENSOR (05) - STEERING

362554A1

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 186.84mm Stroke

Inc. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Barrel

1шт.

2

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

6

387785A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

387786A1

PISTON ROD

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

387789A1

CYLINDER END CAP

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Washer

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Screw

1шт.

16

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

2шт.

17

388124A1

BUSHING

1шт.

387790A1

SEAL KIT

Inc. 3 - 5, 7, 9, 10, 12 - 14

1шт.
