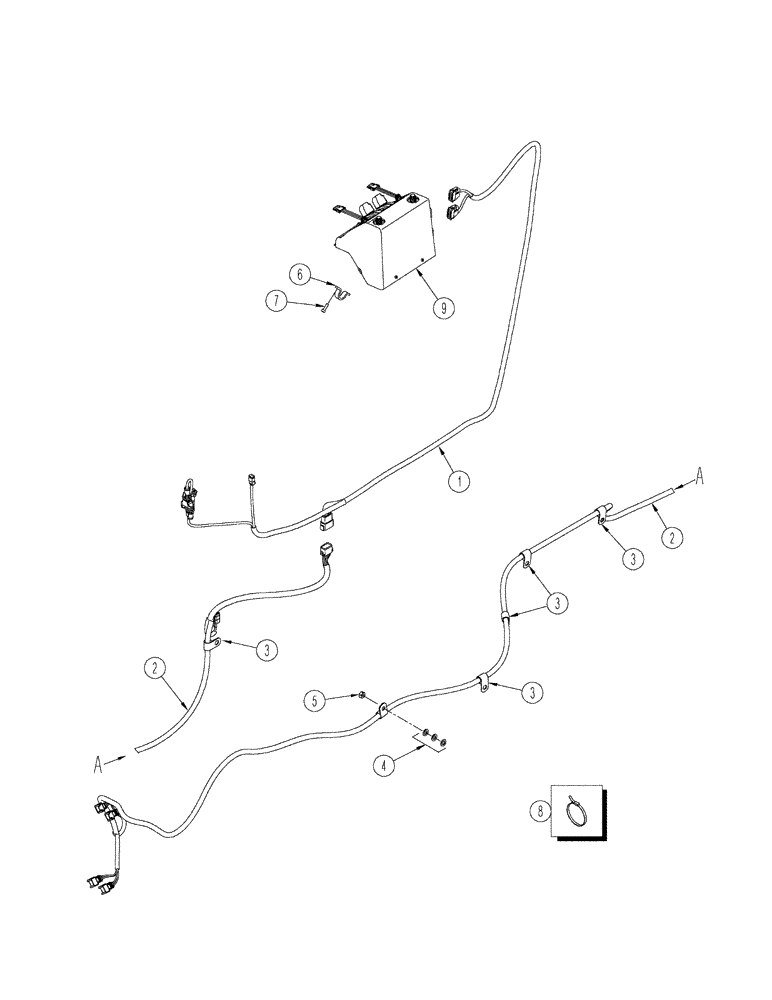

Запчасти Case IH STX325 (04-35) - WIRING - MEGA FLOW HYDRAULIC CONTROLS (04) - ELECTRICAL SYSTEMS

1

430834A1

HARNESS

Cab

1шт.

2

430835A1

HARNESS

1шт.

3

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

6шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

5

829-1310

NUT,M10, Cl 10

1шт.

6

412027A2

CLAMP

Pipe

2шт.

7

565-104

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

8

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

9

REF

INSTRUCTION

Box, Control, See Figure: 04-36

1шт.
