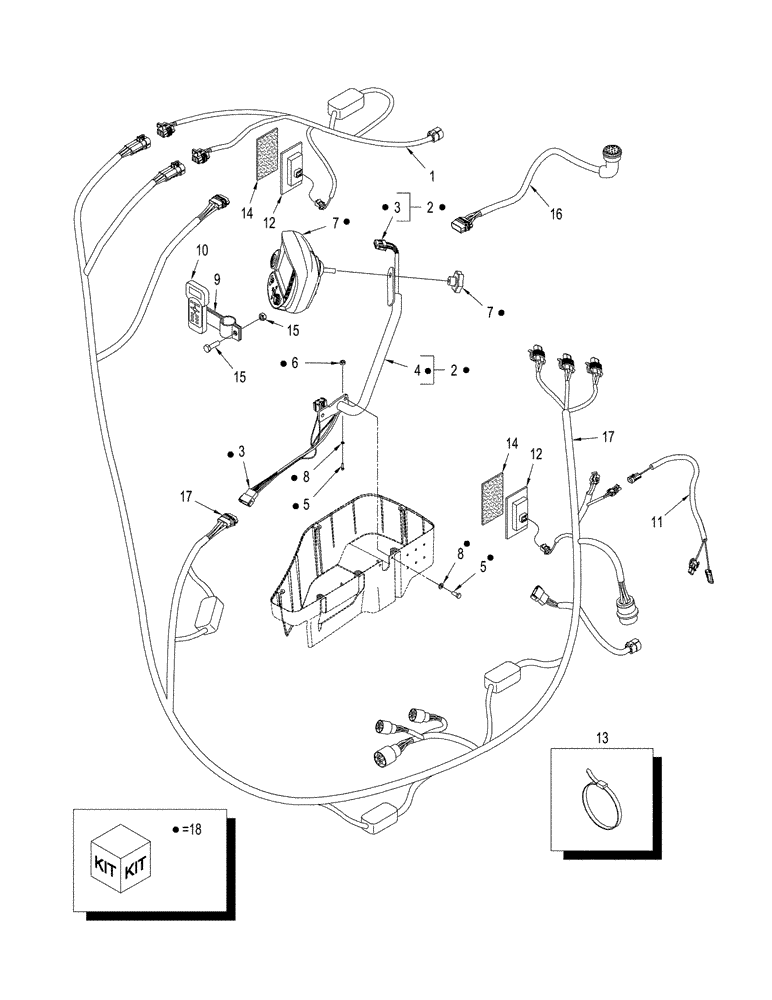

Запчасти Case IH STX325 (04-34) - ACCUGUIDE - VIRTUAL TERMINAL & RELATED PARTS, BSN JEE0106701 (04) - ELECTRICAL SYSTEMS

1

87436715

HARNESS

Auto Guidance, Cab Roof

1шт.

2

87415235

SUPPORT TUBE

Mounting, Inc. 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Harness, Virtual Terminal

1шт.

4

NSS

NOT SOLD SEPARAT

Tube, Mounting

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

7

NSS

NOT SOLD SEPARAT

Monitor, Color Virtual Terminal

1шт.

Order from ACCUGUIDE Price Book

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

87428367

KIT

Adj. Arm Mount GPS70

1шт.

10

87428366

MODULE

Radio, RDL

1шт.

11

87422388

HARNESS

Wheel Speed / Transmission

1шт.

12

284638A2

ELEC CONNECTOR,4 Pin

Active Teminator

2шт.

13

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

15шт.

14

406450A1

FASTENER

Velcro

4шт.

15

87428369

SET

Bolt

1шт.

16

87428396

CABLE ASSY.

CBL, Serial Range: 252-SiteNet

1шт.

17

87440452

HARNESS

Auto Guidance, Cab and Chasis

1шт.

18

87440700

FIP KIT

Virtual Terminal Display, Inc. 2 - 8

1шт.
