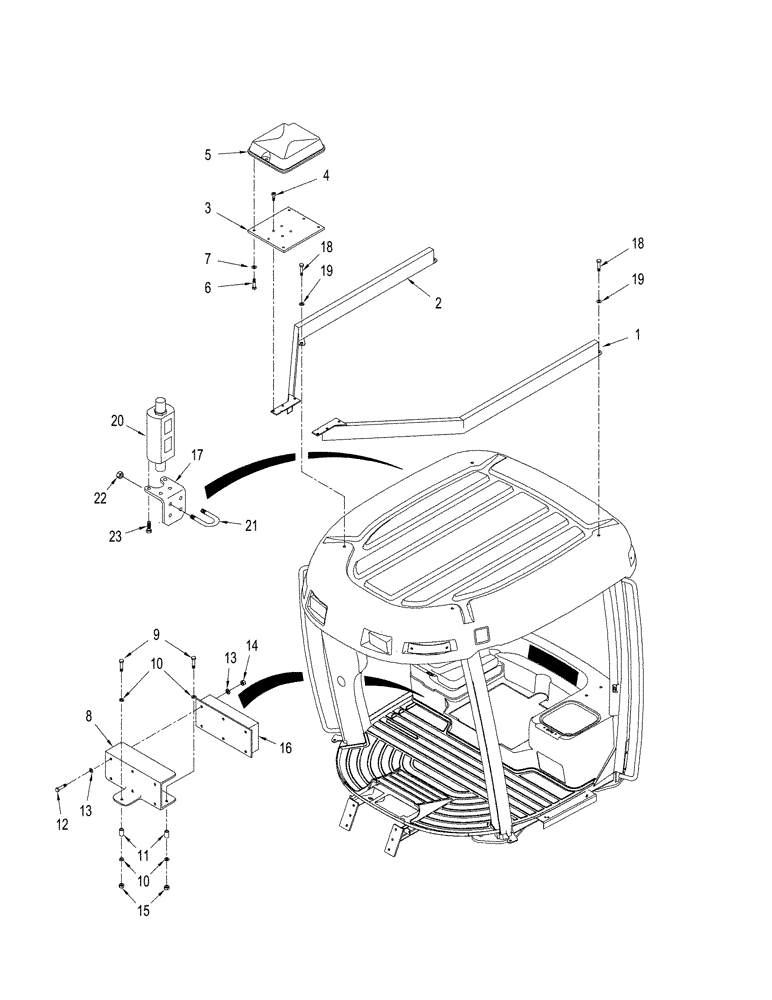

Запчасти Case IH STX325 (04-33) - ACCUGUIDE, GPS - MOUNTING, BSN JEE0106701 (04) - ELECTRICAL SYSTEMS

1

87440737

TUBE,1961, 628.5 mm L

GPS Antenna Mounting, LH

1шт.

2

87440736

TUBE,1961, 628.5 mm L

GPS Antenna Mounting, RH

1шт.

3

87440738

BASE PLATE

GPS Antenna

1шт.

4

843-1825

SCREW,Flat , M8 x 25mm, Cl 4.8

4шт.

5

87428518

MODULE

Receiver, DGPS / RTK

1шт.

6

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

3шт.

7

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

8

87421420

BASE PLATE

Mounting, Controller

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

11

87421443

SPACER

3шт.

12

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

6шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

12шт.

14

824-1404

NUT,M4, Cl 5

6шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

16

87428425

MODULE

Controller

1шт.

17

87429553

BRACKET

Brkt L Shaped Rover

1шт.

18

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

19

895-15016

WASHER,M16 x 34 x 3

10шт.

20

87428519

RADIO

RTK Radio

1шт.

21

19-153

U-BOLT

5/16

2шт.

22

231-1445

NUT,5/16"-18, GB

Nylon

4шт.

23

414-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

4шт.

9

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.
