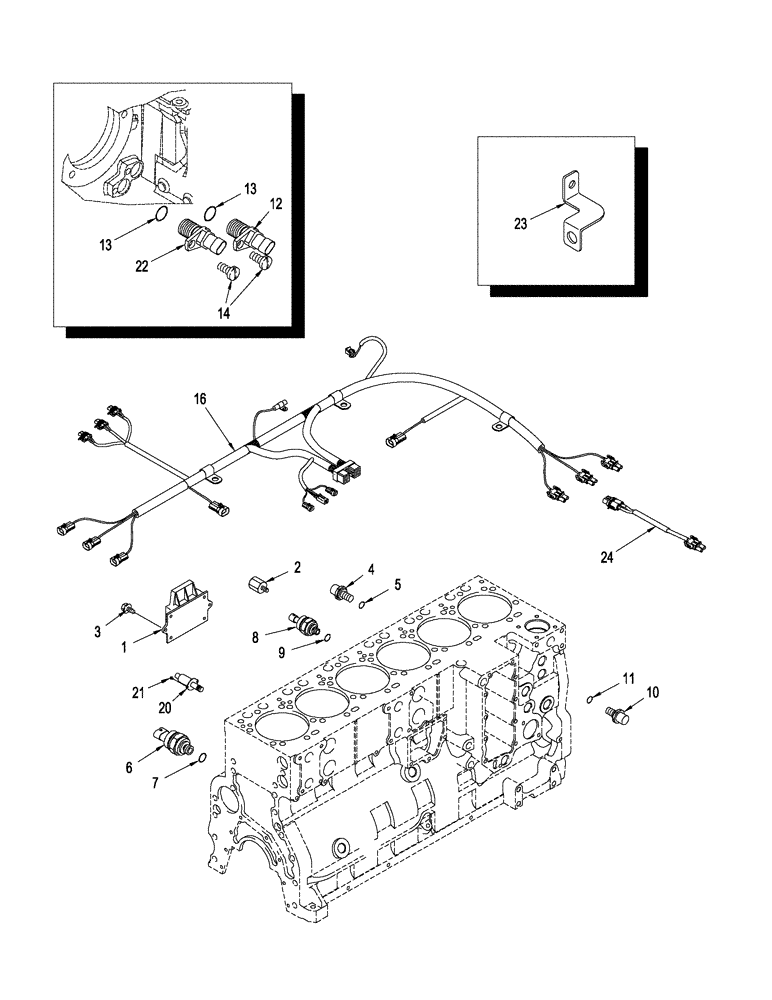

Запчасти Case IH STX325 (04-31) - MODULE, ENGINE CONTROL (04) - ELECTRICAL SYSTEMS

1

J944125

ECU

1шт.

1

JR944125

REMAN-ELECT MONITOR

Reman-Monitor Control, Remanufactured

1шт.

1

JC944125

CORE-MONITOR

Return Part Number

1шт.

2

J936236

SPACER

2шт.

3

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

4

87559412

SENSOR

Manifold Air Pressure, Inc. 5

1шт.

5

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

6

87536765

SENSOR

Lubrication Oil Pressure, Inc. 7

1шт.

7

J330202

O-RING,11.3MM ID x 2.2 Thk

1шт.

8

J408345

SENSOR

Intake Manifold Air Temperature, Inc. 9

1шт.

9

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

10

J865346

SENSOR

Coolant Temperature, Inc. 11

1шт.

11

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

87382544

SENSOR

Speed/Position, Inc. 13

2шт.

13

87405641

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

14

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

16

J938746

WIRE HARNESS

Used With Ref. 17, 18 and 19, Serial Range: -JEE0102001

1шт.

16

87323950

WIRE HARNESS

Engine, Inc. 24

1шт.

ASN 46279415 (8.3L) Engine and ASN 46278576 (9.0L) Engine

1шт.

17

313490A1

BOLT

M10 x 14, Not Illustrated

6шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

Not Illustrated

1шт.

19

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

Not Illustrated

1шт.

20

87718120

SENSOR

Ambient Air Pressure

1шт.

STX325

1шт.

21

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

22

87400183

SENSOR

Speed/Position, Inc. 13, Start Serial: JEE0102001

1шт.

Models Built BSN JEE0102001 use (2) J4002064 Sensors and Models ASN JEE0102001 use (1) J4002064 and (1) 87400183 Sensor.

1шт.

23

87414641

BRACKET

Mounting, Engine Harness

1шт.

ASN 46279415 (8.3L) Engine and ASN 46278576 (9.0L) Engine

1шт.

24

87428093

WIRE HARNESS

Coolant Jumper

1шт.

ASN 46279415 (8.3L) Engine and ASN 46278576 (9.0L) Engine

1шт.
