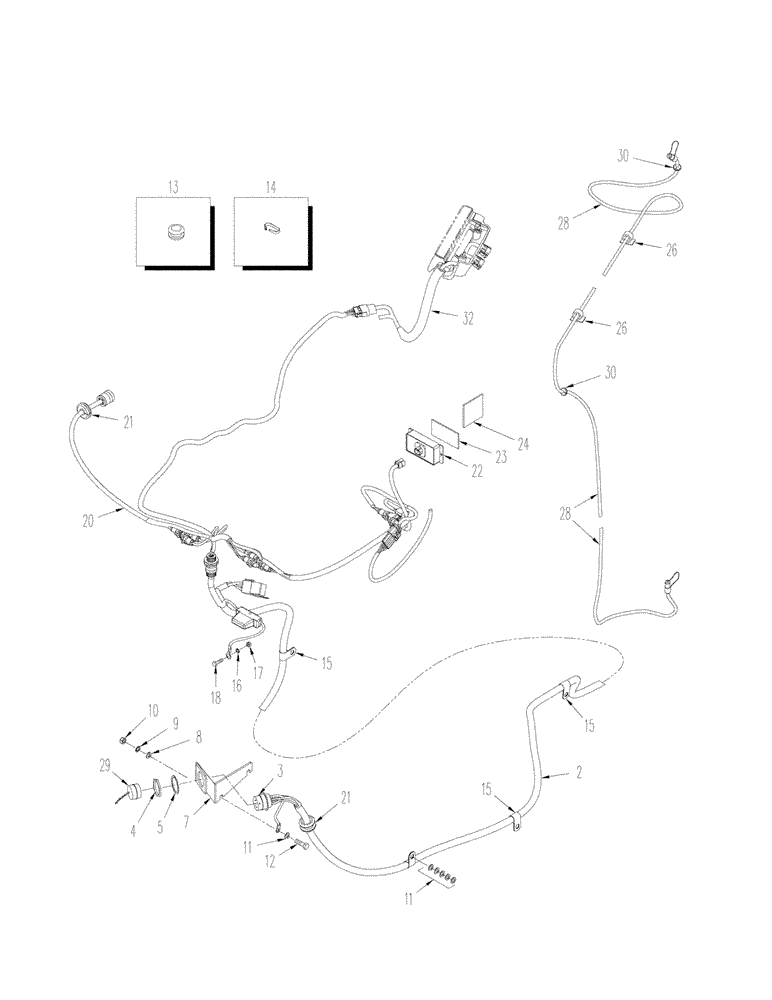

Запчасти Case IH STX325 (04-30) - HARNESS - ADVANCED FARMING SYSTEMS, BSN JEE0106701 (04) - ELECTRICAL SYSTEMS

2

405029A2

HARNESS

AFS Chassis

1шт.

3

352506A1

ELEC CONNECTOR,Male, 9 Pin

1шт.

4

459329C1

NUT

1шт.

5

459330C1

LOCK WASHER

1шт.

7

405387A1

PLATE

Implement Connector

1шт.

8

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

12

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

13

328265A1

GROMMET

1шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

12шт.

15

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

6шт.

16

892-11005

LOCK WASHER,M5

1шт.

17

825-1405

NUT,M5, Cl 8

1шт.

18

614-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

1шт.

20

405030A2

HARNESS

AFS CAB

1шт.

21

248-23108

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

1шт.

22

284638A2

ELEC CONNECTOR,4 Pin

1шт.

23

406450A1

FASTENER

Dual Lock

2шт.

24

406449A1

FASTENER

Dual Lock

2шт.

26

169850C2

CABLE CLIP

2шт.

28

405687A1

CABLE

Receiver

1шт.

29

245041C1

CAP

1шт.

30

248-2340

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

2шт.

32

405032A1

TUBE

Monitor

1шт.
