Запчасти Case IH STX325 (04-29) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE AND THREE POINT HITCH (04) - ELECTRICAL SYSTEMS

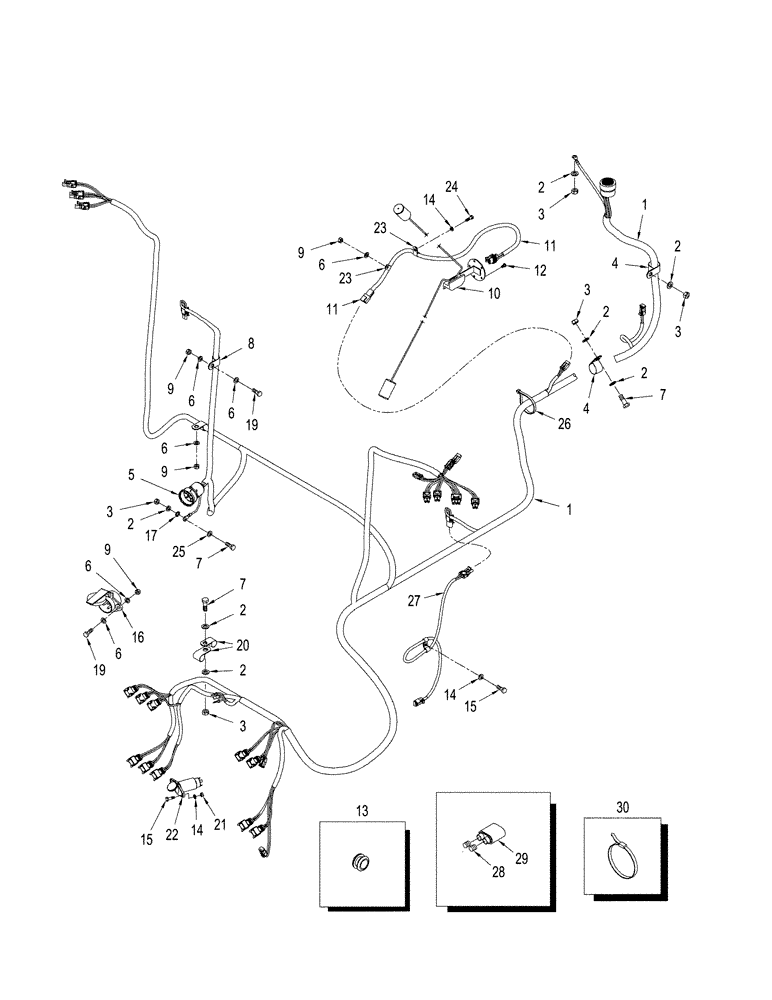

Схема запчастей Case IH STX325 - (04-29) - HARNESS - REAR FRAME, WITH ELECTRONIC REMOTE AND THREE POINT HITCH (04) - ELECTRICAL SYSTEMS
4
7
9
7
17
2
8
23
30
6
9
22
23
14
19
6
1
6
3
3
24
29
16
7
9
6
25
3
2
28
15
20
14
2
13
2
3
12
6
2
21
4
27
5
9
10
19
26
15
1
14
6
11
3
2
11
2

Артикул

Название

Примечание

Количество

1

429849A1

HARNESS

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

3шт.

5

481849C1

PROTECTIVE COVER

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

7

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

8

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

10

367960A2

SENDER UNIT

SENDER Fuel Level

1шт.

11

87438650

HARNESS

Jumper Fuel Sender

1шт.

12

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

5шт.

13

328265A1

GROMMET

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

16

121645C1

MULTIPOLE CONNECTOR,7 Pin

N.A. Only

1шт.

17

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

20

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

1шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

22

367322A1

CONNECTOR, ELEC

CONNECTOR Remote, Three-Point Hitch

1шт.

23

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

24

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

25

892-11010

LOCK WASHER,M10

1шт.

26

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (184 mm)

2шт.

27

392227A1

HARNESS

Differential Lock

1шт.

28

225127C1

PLUG

8шт.

29

245483C1

ELEC CONNECTOR,Male, 2 Pin

Without Field Lights

4шт.

30

440567A1

CABLE TIE

508 mm (20 in.)

1шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

Выбрано товаров: 30
