Запчасти Case IH STX325 (04-27) - HARNESS - REAR FRAME, WITH MANUAL REMOTE (04) - ELECTRICAL SYSTEMS

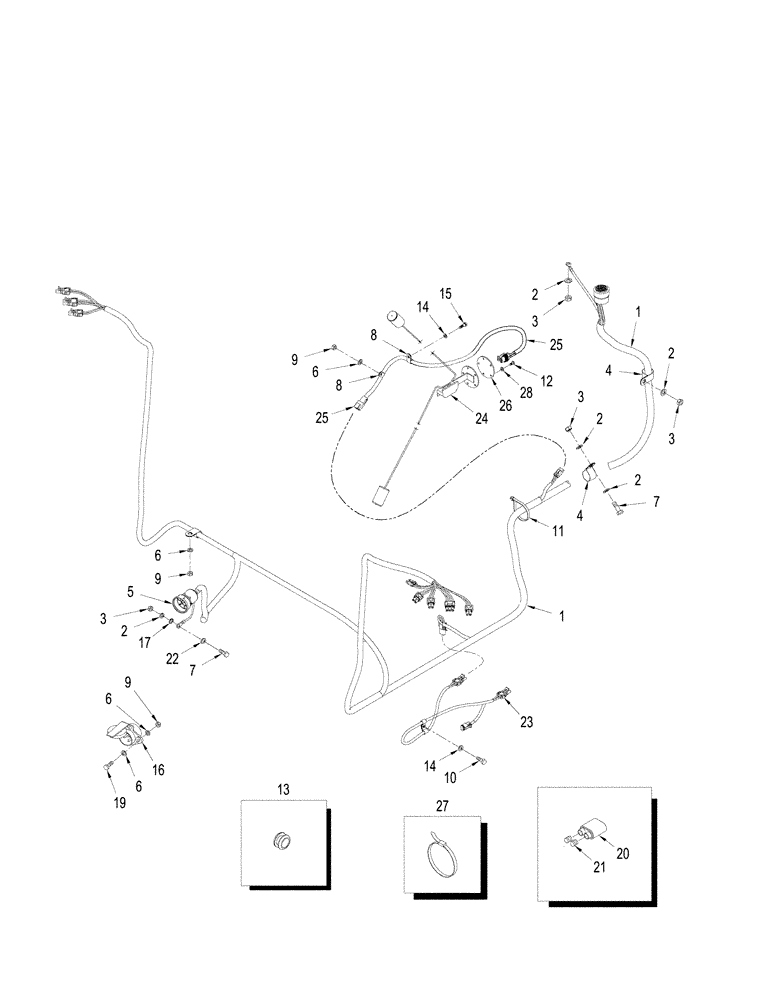

Схема запчастей Case IH STX325 - (04-27) - HARNESS - REAR FRAME, WITH MANUAL REMOTE (04) - ELECTRICAL SYSTEMS
4
10
6
24
15
6
21
19
8
25
1
4
9
9
2
3
14
3
7
17
23
6
14
9
8
2
11
6
5
25
20
28
3
16
3
2
22
2
26
7
2
12
27
13
1

Артикул

Название

Примечание

Количество

1

445145A1

HARNESS

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

3

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

3шт.

5

481849C1

PROTECTIVE COVER

Connector

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

11

440567A1

CABLE TIE

508 mm (20 in.)

1шт.

12

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

6шт.

13

328265A1

GROMMET

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

16

121645C1

MULTIPOLE CONNECTOR,7 Pin

Trailer

1шт.

17

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

20

245483C1

ELEC CONNECTOR,Male, 2 Pin

Without Field Lights

4шт.

21

225127C1

PLUG

8шт.

22

892-11010

LOCK WASHER,M10

1шт.

23

392227A1

HARNESS

Differential Lock

1шт.

24

87434677

SENDER UNIT

Fuel Level, Inc. 26

1шт.

25

87438650

HARNESS

Jumper Fuel Sender

1шт.

26

104812C3

GASKET,3.05mm Thk

1шт.

27

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (184 mm)

1шт.

28

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

Выбрано товаров: 28
