Запчасти Case IH STX325 (04-25) - HARNESS - FRONT CONSOLE (04) - ELECTRICAL SYSTEMS

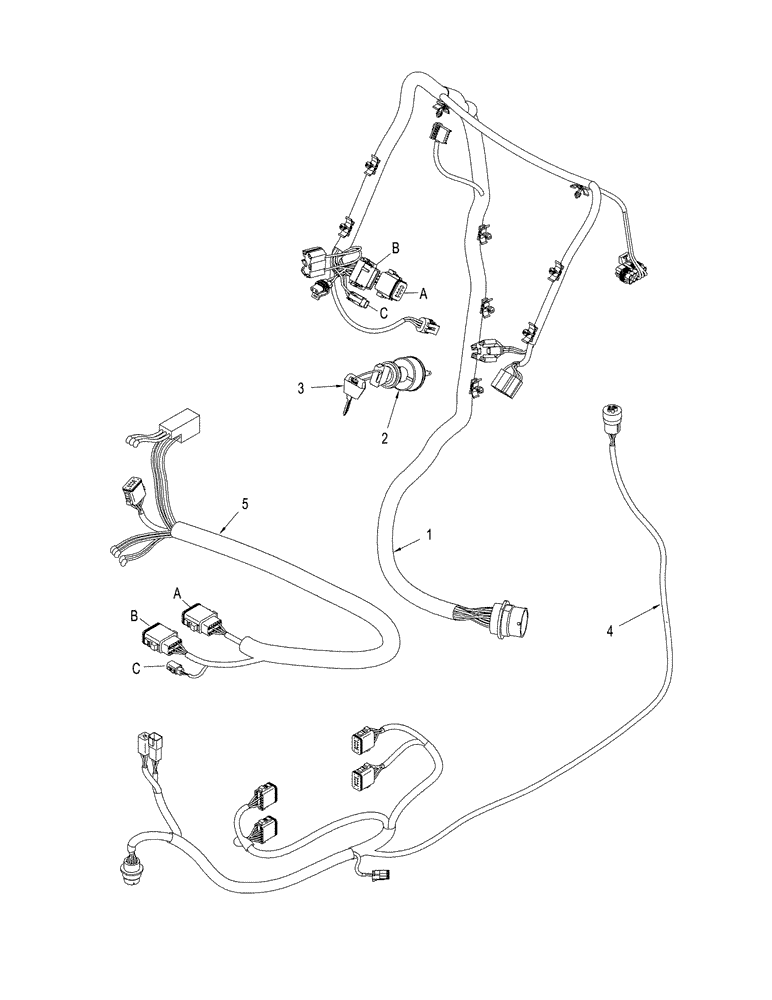

Схема запчастей Case IH STX325 - (04-25) - HARNESS - FRONT CONSOLE (04) - ELECTRICAL SYSTEMS
5
4
1
2
3

Артикул

Название

Примечание

Количество

1

430654A2

HARNESS

Front Console

1шт.

With Manual Shift Transmission

1шт.

1

426766A2

HARNESS

Front Console

1шт.

With Power Shift Transmission

1шт.

2

363914A1

IGNITION SWITCH

With Keys

1шт.

3

86502201

IGNITION KEY

1шт.

4

373538A2

HARNESS

Steering Control

1шт.

With ACCUSTEER

1шт.

86991898

CONTROL

With Self-Cancel, Inc. 5, Also See Figure: 05-08

1шт.

With Power Shift Transmission

1шт.

360058A1

CONTROL

Without Self-Control, Inc. 6, Not Illustrated, Also See Figure: 05-08

1шт.

With Power Shift Transmission

1шт.

414332A1

CONTROL

With Self-Cancel, Inc. 4, Also See Figure: 05-09

1шт.

With Manual Shift Transmission

1шт.

414331A1

CONTROL

Without Self-Cancel, Inc. 5, Not Illustrated, Also See Figure: 05-09

1шт.

With Manual Shift Transmission

1шт.

5

375681A1

SENSOR

Transmission Control And Turn Signal Self-Cancelling Sensor (Sensor Not Serviced Separately)

1шт.

With Power Shift Transmission

1шт.

5

84180381R

REMAN-SENSOR

STX275, STX325, Both CASE IH 4WD TRACTOR (AFTER S/N JEE0099501), Transmission Control and Turn Signal Self-Cancelling Sensor, Reman for New PN 375681A1

1шт.

5

84180381C

CORE-SENSOR

Return Number

1шт.

5

416123A1

WIRE HARNESS

With Self-Cancel

1шт.

With Manual Shift Transmission

1шт.

6

303463A1

HARNESS

Without Self-Cancel, Not Illustrated

1шт.

With Power Shift Transmission

1шт.

6

416124A1

WIRE HARNESS

Without Self-Cancel, Not Illustrated

1шт.

With Manual Shift Transmission

1шт.

Выбрано товаров: 26
