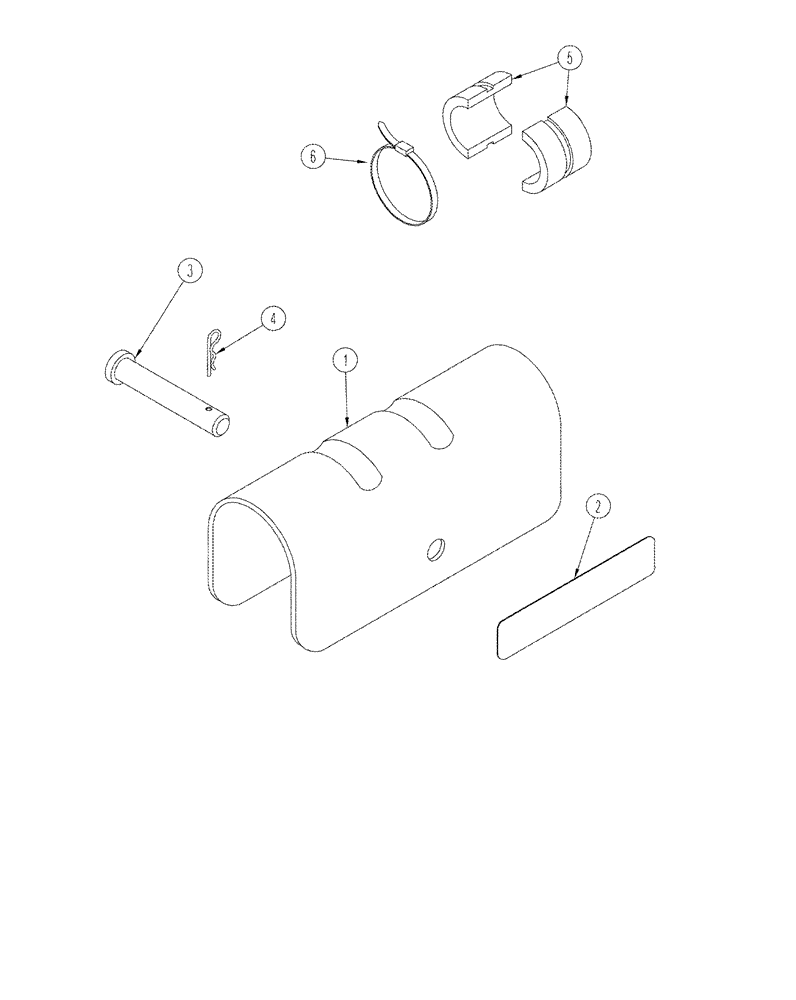

Запчасти Case IH STX325 (05-10) - ARTICULATION LOCKS (05) - STEERING

1

379099A2

STOP LOCK

used without stops, STX 275 (1), STX 325 (1)

1шт.

1

379992A1

LOCK

used with 40 mm

1шт.

1

379991A1

STOP LOCK

used with 57 mm

1шт.

2

2-6874T2

DECAL

1шт.

3

427-8325

CLEVIS PIN,1/2" x 3 1/4"

1/2 x 3-1/2

1шт.

4

19-5400

PIN

1/8

1шт.

5

370867A2

STOP

articulation, rear, 57 mm

1шт.

5

370864A2

STOP

articulation, 40 mm

1шт.

6

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

394038A1

KIT

articulation stop, 40 mm, Includes: Ref. 1 - 6

1шт.

394041A1

KIT

articulation stop, 57 mm, consists of: Ref. 1 - 6

1шт.
