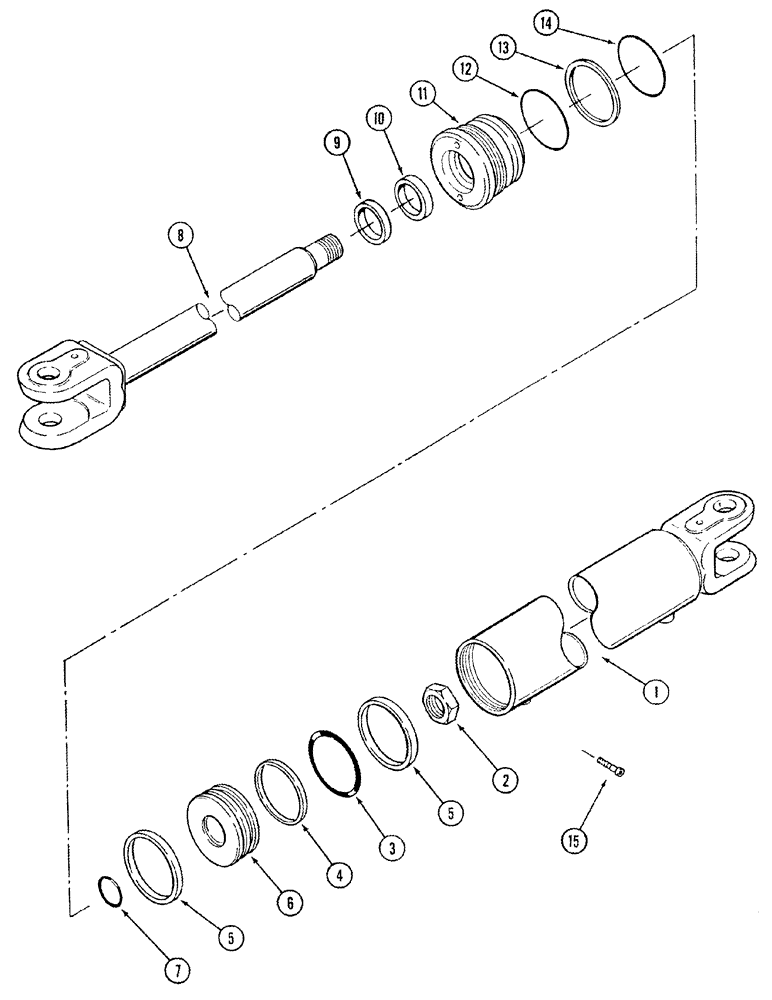

Запчасти Case IH STX325 (05-08) - CYLINDER ASSY STEERING ACCUSTEER TRACTOR (05) - STEERING

362554A1

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 186.84mm Stroke

consists of: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BARREL

1шт.

2

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

5

NSS

NOT SOLD SEPARAT

RING wear

2шт.

6

387785A1

PISTON

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

387786A1

PISTON ROD

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL

1шт.

11

387789A1

CYLINDER END CAP

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW

1шт.

387790A1

SEAL KIT

steering cylinder, Includes: Ref. 3 - 5, 7, 9, 10, 12 - 14

1шт.
