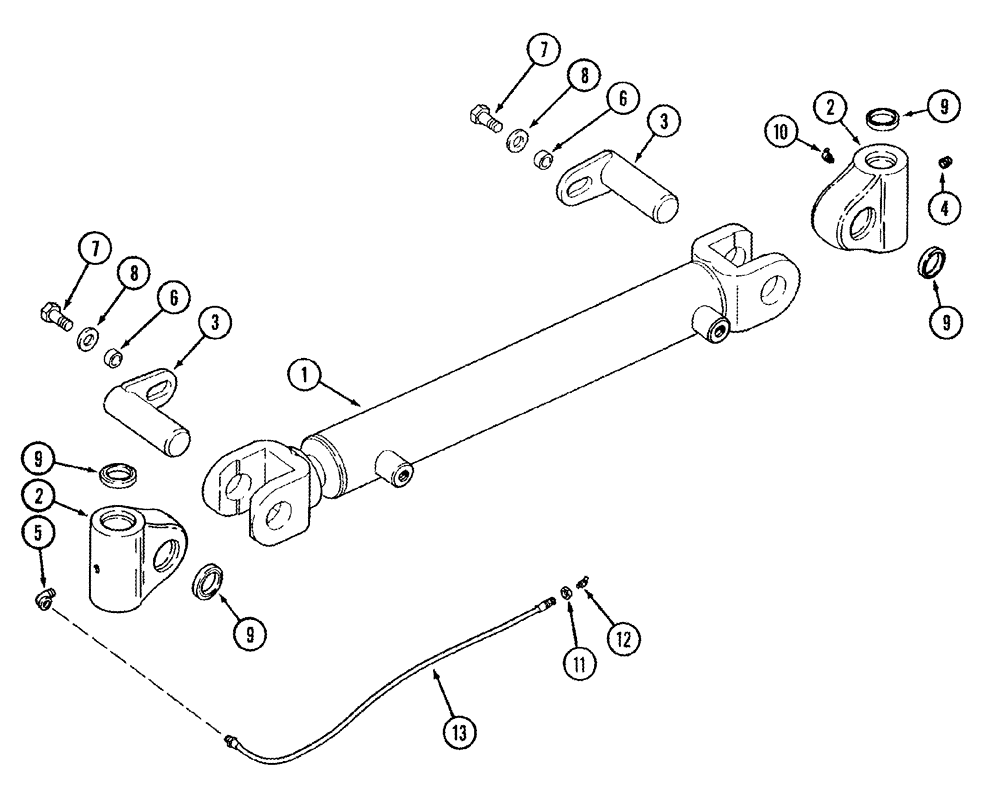

Запчасти Case IH STX325 (05-04) - CYLINDER MOUNTING ARTICULATION (05) - STEERING

293546A1

CYLINDER

without sensor, consists of: Ref. 1 - 13

1шт.

377344A1

CYLINDER

with sensor, consists of: Ref. 1 - 13

1шт.

1

352170A3

CYLINDER

without sensor, see Figure 05-05

1шт.

1

397954A1

CYLINDER

with sensor, see Figure 05-06

1шт.

2

221227A1

KNUCKLE

ASSY.

2шт.

3

281673A2

PIN

2шт.

4

86637724

PLUG,1/8" - 27 NPT

2шт.

5

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

6

320933R1

2шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

9

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

8шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

11

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

12

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

1шт.

13

937781R92

HOSE,3.02mm ID x 686mm L

1шт.
