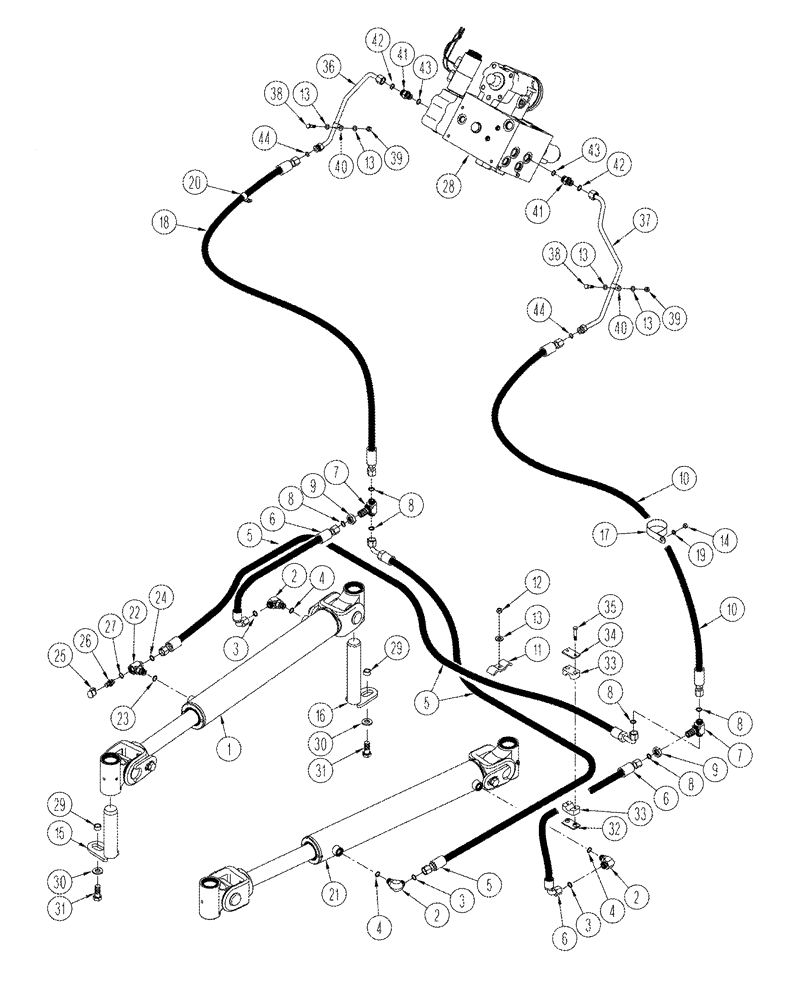

Запчасти Case IH STX325 (05-02) - HYDRAULICS STEERING ACCUSTEER TRACTOR (05) - STEERING

1

NSS

NOT SOLD SEPARAT

CYLINDER ASSY, articulation, see Page(s) 5-15, order components

1шт.

2

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 3 and 4

3шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

5

352114A1

HOSE

1460 mm (57 in.)

2шт.

6

367244A1

HOSE,12.7mm ID x 550mm L

550 mm (21-1/2 in.)

2шт.

7

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

M12 fc sl x blkhd fc sl, Includes: Ref. 8

2шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

9

701-903

NUT,13/16" - 16

2шт.

10

393607A1

HOSE

1933 mm (76 in.)

2шт.

11

R15257

CLAMP

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

15

256295A1

PIN

2шт.

16

360493A1

PIN

2шт.

17

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

18

393606A1

HOSE

1752 mm (69")

1шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

20

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

21

377344A1

CYLINDER

articulation, with sensor, see Figure 05-04

1шт.

22

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

M18 orb, Includes: Ref. 23 and 24

1шт.

23

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

178889A1

DIAGNOSTIC COUPLER

diagnostic, Includes: Ref. 25 and 26

1шт.

25

H434163

DUST CAP

1шт.

26

182606A1

HYD CONNECTOR

Includes: Ref. 27

1шт.

27

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

28

373378A3

VALVE, CONTROL

steering, see Figure 05-15

1шт.

29

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

4шт.

30

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

31

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

32

399431A1

PLATE

2шт.

33

399102A1

CLAMP

4шт.

34

279519A1

LARGE PLATE

PLATE, LARGE

2шт.

35

828-6045

BOLT,Hex, M6 x 1 x 45mm, Cl 10.9

4шт.

36

385810A1

TUBE,12.2 mm OD, 304, 119 mm Length

1шт.

37

385574A1

TUBE,12.2 mm OD, 410, 168 mm Length

1шт.

39

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

40

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

41

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. Ref. 42 and 43

2шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

43

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

38

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.
