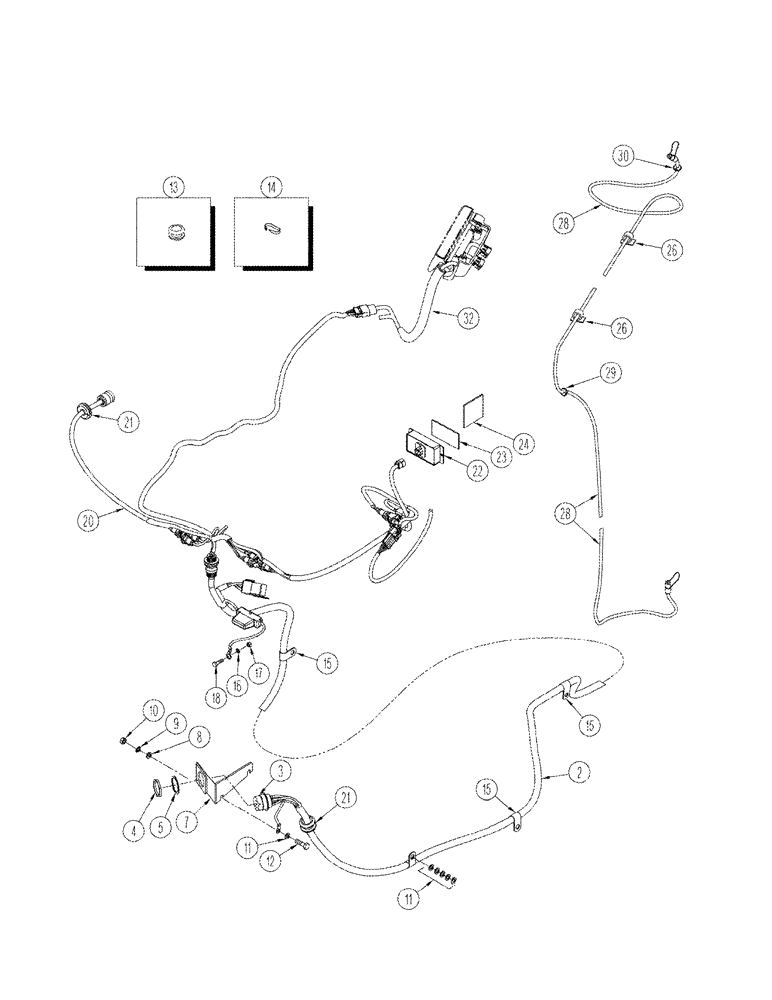

Запчасти Case IH STX325 (04-31) - HARNESS ADVANCED FARMING SYSTEMS (04) - ELECTRICAL SYSTEMS

1

356276A1

HARNESS

chassis, prior to February 2001 build, not illustrated

1шт.

2

405029A1

HARNESS

chassis, February 2001 build and after

1шт.

3

352506A1

ELEC CONNECTOR,Male, 9 Pin

1шт.

4

459329C1

NUT

1шт.

5

459330C1

LOCK WASHER

1шт.

6

360552A1

PLATE

implement connector, prior to February 2001 build, not illustrated

1шт.

7

405387A1

PLATE

implement connector, February 2001 build and after

1шт.

8

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

7шт.

12

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

13

328265A1

GROMMET

1шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

12шт.

15

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

6шт.

16

892-11005

LOCK WASHER,M5

1шт.

17

825-1405

NUT,M5, Cl 8

1шт.

18

614-5012

BOLT,Hex, M5 x 0.8 x 12mm, Cl 8.8, Full Thd

1шт.

19

355961A1

HARNESS

cab, prior to February 2001 build, not illustrated

1шт.

20

405030A1

HARNESS

cab, February 2001 build and after

1шт.

21

248-2340

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

Prior to February 2001 build

1шт.

21

248-23108

GROMMET,3/4" ID x 1 7/16" Groove Dia, Str Cut

February 2001 build and after

1шт.

22

284638A2

ELEC CONNECTOR,4 Pin

February 2001 build and after

1шт.

23

406450A1

FASTENER

dual lock, February 2001 build and after

2шт.

24

406449A1

FASTENER

dual lock, February 2001 build and after

2шт.

25

245854A1

CLIP

prior to February 2001 build, not illustrated

4шт.

26

169850C2

CABLE CLIP

February 2001 build and after

2шт.

27

277852A2

CABLE

CBL TNC RT ANGL5MTRS

1шт.

28

405687A1

CABLE

receiver, February 2001 build and after

1шт.

29

406027A1

GROMMET

3/4 ID

1шт.

30

248-2340

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

1шт.

31

372403A1

TUBE

monitor, prior to February 2001 build, not illustrated

1шт.

32

405032A1

TUBE

monitor, February 2001 build and after

1шт.
