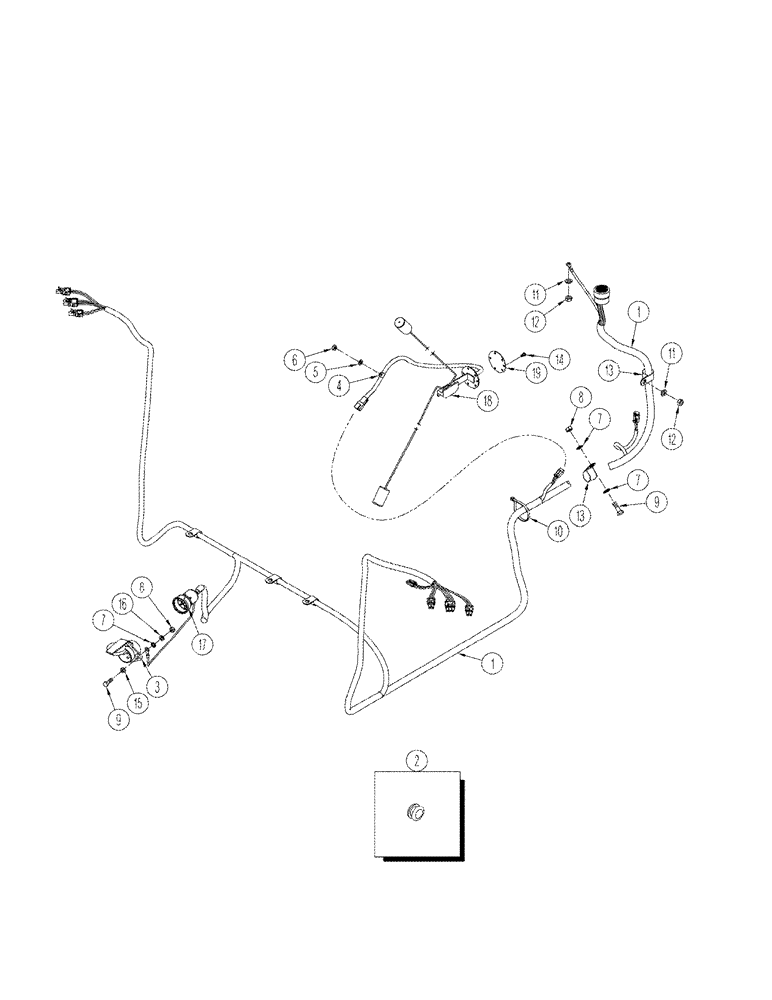

Запчасти Case IH STX325 (04-28) - HARNESS REAR FRAME, WITH MANUAL REMOTE (04) - ELECTRICAL SYSTEMS

1

390593A1

HARNESS

1шт.

2

328265A1

GROMMET

3шт.

3

121645C1

MULTIPOLE CONNECTOR,7 Pin

trailer

1шт.

4

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

6

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

9шт.

10

50-2037T1

STRAP

1шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

13

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

3шт.

14

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

5шт.

15

892-11008

LOCK WASHER,8mm ID

2шт.

16

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

17

481849C1

PROTECTIVE COVER

connector

1шт.

18

367960A2

SENDER UNIT

SENDER fuel level, Includes: Ref. 19

1шт.

19

104812C3

GASKET,3.05mm Thk

1шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
