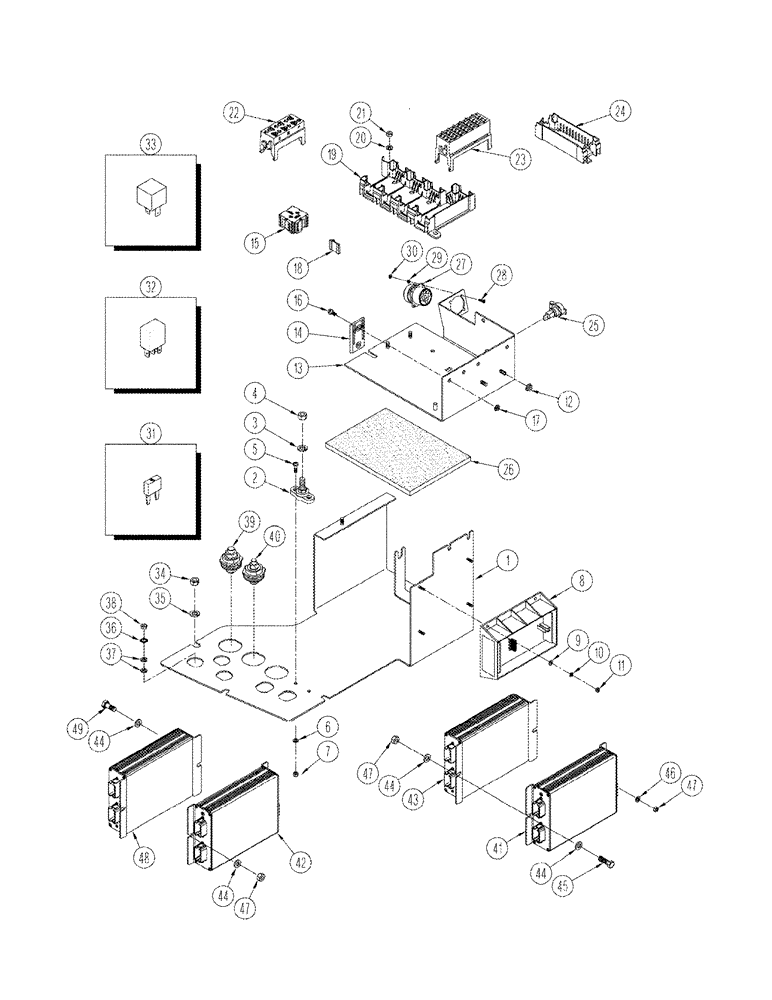

Запчасти Case IH STX325 (04-25) - ELECTRONIC MODULE ASSY (04) - ELECTRICAL SYSTEMS

403777A1

BOARD, PRINTED CIRCU

IT main electronics, standard cab, consists of: Ref. 1 - 33, 39, 40

1шт.

388290A1

BOARD, PRINTED CIRCU

IT main electronics, deluxe cab, luxury cab, see Page(s) 4-55, consists of: Ref. 1 - 38

1шт.

1

388289A1

BRACKET

1шт.

2

303717A1

JUNCTION BLOCK

junction

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

7

824-1405

NUT,M5, Cl 5

2шт.

8

296674A3

FLASHER UNIT

1шт.

9

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

10

892-11004

LOCK WASHER,M4

4шт.

11

824-1404

NUT,M4, Cl 5

4шт.

12

825-5146

SERRATED NUT,M6, Flg Ser

3шт.

403776A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT electronics, standard cab, see Figure 04-23, consists of: Ref. 13 - 33

1шт.

381260A1

BOARD, PRINTED CIRCU

IT electronics, deluxe cab, luxury cab, see Figure 04-24, consists of: Ref. 13 - 33

1шт.

13

367147A1

BRACKET

standard cab

1шт.

13

339761A3

PLATE

deluxe cab, luxury cab

1шт.

14

367147A1

BRACKET

mounting

3шт.

15

367145A1

ELEC CONNECTOR,Female, 4 Pin

terminal

5шт.

16

841-4512

SCREW,Hex Washer , M5 x 12mm, Cl 4.8

3шт.

17

825-5145

NUT,M5, Flg Ser

3шт.

18

367146A1

WEDGE

standard cab (3), deluxe cab (4), luxury cab (4)

1шт.

19

191135A1

BASE

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

22

144417A1

CONNECTING BLOCK

3шт.

23

144421A1

CONNECTING BLOCK

2шт.

24

194319A1

FUSE

1шт.

25

300655A1

POWER SOCKET

1шт.

26

349062A1

PAD, RUBBER

1шт.

27

310057A1

ELEC CONNECTOR,Male, 9 Pin

1шт.

28

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

4шт.

29

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

4шт.

30

824-1403

NUT,M3, Cl 5

4шт.

31

121416A1

FUSE,30A, Mini, Green

Standard cab (5), Deluxe cab (4), Luxury cab (4)

1шт.

31

121414A1

FUSE,20A, Mini, Yellow

Standard cab (7), Deluxe cab (8), Luxury cab (8)

1шт.

31

121415A1

FUSE,25A, Mini, Clear

2шт.

31

121413A1

FUSE,15A, Mini, Blue

Standard cab (10), Deluxe cab (8), Luxury cab (8)

1шт.

31

121412A1

FUSE,10A, Mini, Red

Standard cab (7), Deluxe cab (9), Luxury cab (9)

1шт.

31

121411A1

FUSE,7.5A, Mini, Brown

3шт.

31

121410A1

FUSE,5A, Mini, Tan

Standard cab (8), Deluxe cab (6), Luxury cab (6)

1шт.

31

368224A1

DIODE

differential lock

1шт.

32

105849A1

RELAY

20 amp, standard cab (13), deluxe cab (12), luxury cab (12)

1шт.

33

368459A1

RELAY,12V, 70A

70 amp

5шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

36

893-11010

LOCK WASHER,Ext Tooth, M10

2шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

39

A187523

JUNCTION BLOCK

junction

1шт.

40

311430A1

BLOCK

junction

1шт.

41

323758A4

CONTROL UNIT

three-point hitch, see note

1шт.

41

323758A4R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

41

323758A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

42

313776A4

ECU

auxiliary, see note

1шт.

42

313776A4R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

42

313776A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

43

330537A3

CONTROL UNIT

axle control, ACCUSTEER (1)

1шт.

44

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

45

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

46

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

47

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

48

400693A2

BOARD, PRINTED CIRCU

IT transmission

1шт.

48

391112A2

CONTROL UNIT

transmission, see note

1шт.

48

391112A2R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

48

391112A2C

CORE-ELECTRONIC CONT

Return Number

1шт.

49

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
