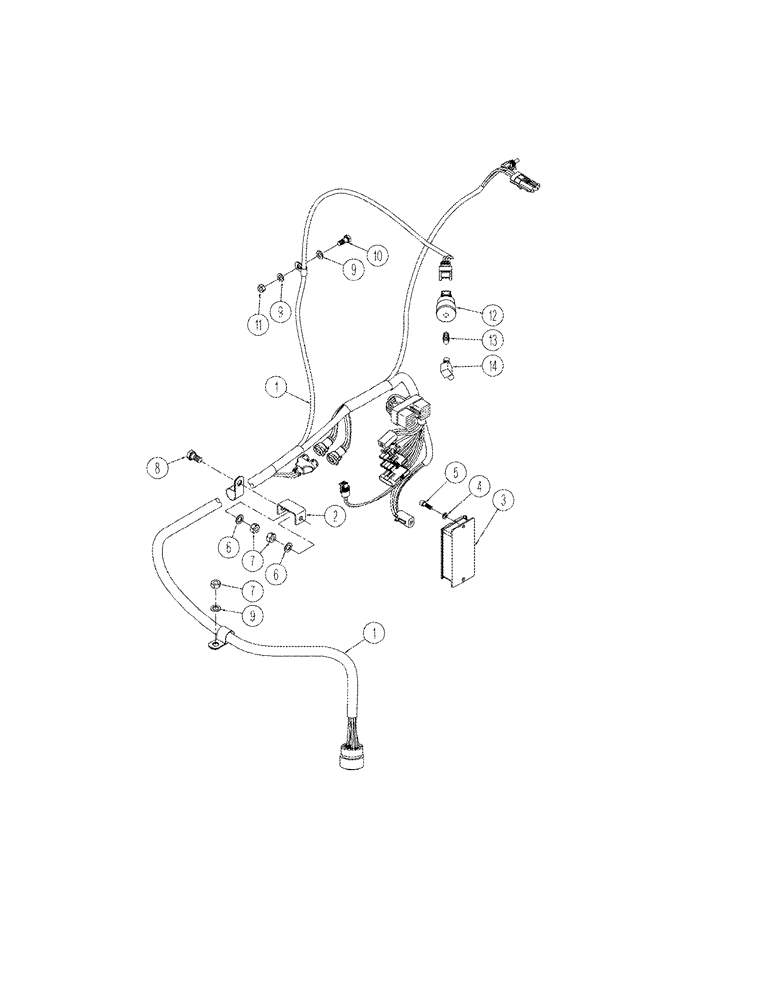

Запчасти Case IH STX325 (04-22) - HARNESS ENGINE (04) - ELECTRICAL SYSTEMS

1

379234A2

HARNESS

engine, 8.3 L/9.0 L

1шт.

2

379574A1

BRACKET

offset

1шт.

3

284638A2

ELEC CONNECTOR,4 Pin

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

5шт.

12

293797A1

RESTRICTION SWITCH

Air

1шт.

13

D36264

FITTING

air cleaner

1шт.

14

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.
