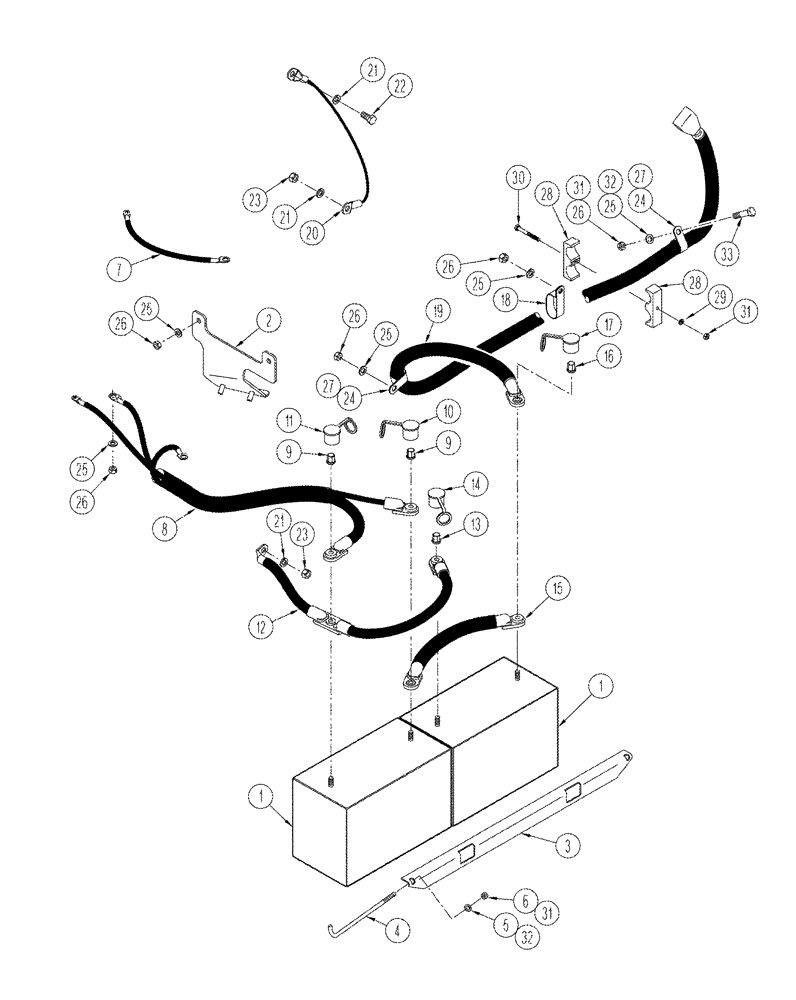

Запчасти Case IH STX325 (04-15) - BATTERIES (04) - ELECTRICAL SYSTEMS

1

BMF31GS

DRY BATTERY

1000 cca

2шт.

2

365035A5

BRACKET

1шт.

3

367148A1

BRACKET

mounting

1шт.

4

389798A1

ROD

2шт.

6

829-10408

M8; 10

2шт.

7

364590A1

CABLE

circuit breaker

1шт.

8

361988A3

HARNESS

cab power, Includes: Ref. 9 - 11

1шт.

9

313189A1

NUT

2шт.

10

NSS

NOT SOLD SEPARAT

CAP

1шт.

11

313109A1

RUBBER PAD

1шт.

12

363112A2

CABLE

negative, Includes: Ref. 13 and 14

1шт.

13

313189A1

NUT

1шт.

14

NSS

NOT SOLD SEPARAT

CAP

1шт.

15

363057A1

CABLE

positive jumper, Includes: Ref. 16 and 17

1шт.

16

313189A1

NUT

1шт.

17

NSS

NOT SOLD SEPARAT

CAP

1шт.

18

L111928

CLAMP

2шт.

19

363058A2

CABLE

positive

1шт.

20

373555A1

STRAP

engine ground, STX 275 (1), STX 325 (1)

1шт.

20

367786A1

STRAP

engine ground, ACCUSTEER (1)

1шт.

21

892-11012

LOCK WASHER,M12

3шт.

22

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

23

829-1412

NUT,M12, Cl 10.9

2шт.

24

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

STX 275 (2), STX 325 (2)

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

STX 275 (7), STX 325 (7), ACCUSTEER (6)

1шт.

27

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

Accusteer (2)

2шт.

28

50-2965T1

HOSE CLAMP

ACCUSTEER (2)

1шт.

29

892-11008

LOCK WASHER,8mm ID

1шт.

30

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

32

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

2шт.

33

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

ACCUSTEER (1)

1шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

STX 275 (7), STX 325 (7), ACCUSTEER (6)

1шт.
