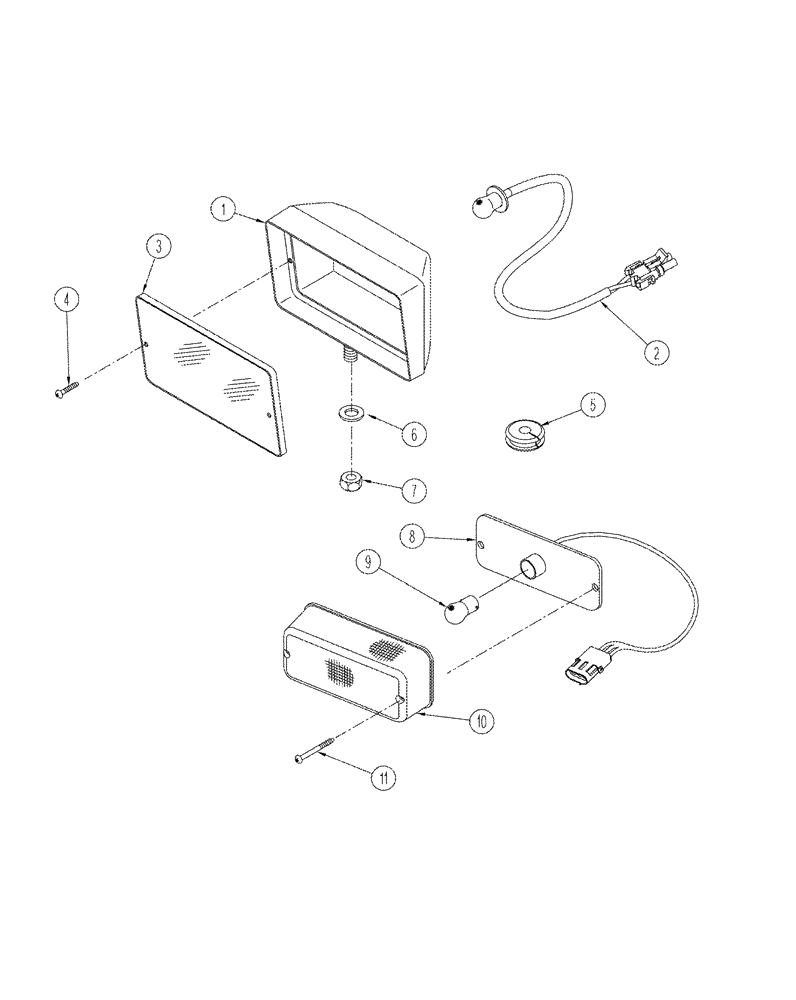

Запчасти Case IH STX325 (04-13) - LAMPS REAR FRAME AND FIELD (04) - ELECTRICAL SYSTEMS

92269C1

WORK LAMP,Halogen, 12V, 55W, Clear

consists of: Ref. 1 - 4

2шт.

1

1964806C1

BEZEL

1шт.

2

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

3

276498A1

LENS

1шт.

4

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

5

248-2399

GROMMET,3/8" ID x 1" Groove Dia, Str Cut

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

300592A1

LAMP

rear frame, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

PLATE backing

1шт.

9

T34857

BULB,C6, #1157, 12.8V

1шт.

10

216045C1

LENS

Red

1шт.

11

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
