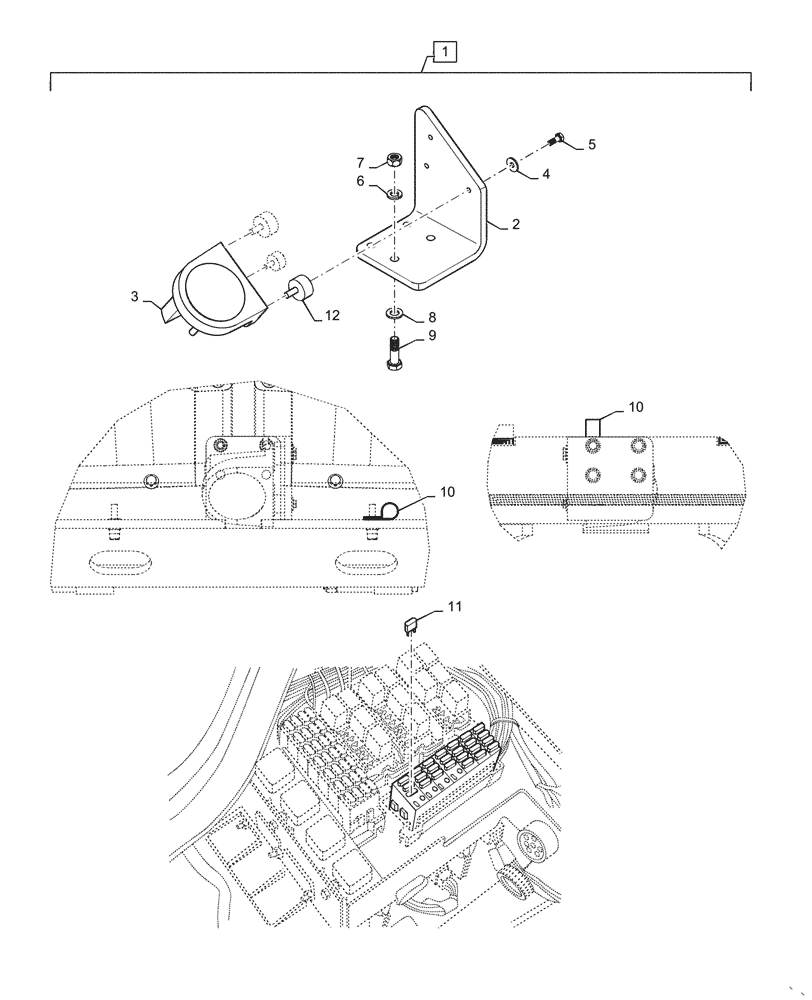

Запчасти Case IH STX325 (04-09[02]) - GROUND SPEED SENSOR (VANSCO) (04) - ELECTRICAL SYSTEMS

1

84242402

KIT

True Ground Speed Sensor

1шт.

2

87570014

BRACKET

1шт.

3

87733890

SENSOR

True Ground Speed, Radar (Vansco)

1шт.

3

87733890R

REMAN-SENSOR

STEIGER 335, STEIGER 385, STEIGER 435, STEIGER 485, STEIGER 535, All (8/07-), STEIGER 280, STEIGER 330, STEIGER 380, STEIGER 430, STEIGER 480, STEIGER 530, All (ASN Z6F105001) (NA), T9030, T9040, T9050, T9060, All BTW Z6F200013 - Z7F204001, All 4WD TRACTOR, STX375, STX425, STX450, STX500, All (AFTER S/N JEE0099501), , STX380, STX430, STX480, STX530, All (BTW Z6F100023 - Z6F105001), STX275, STX325, All CASE IH 4WD TRACTOR, TJ375, TJ425, TJ450, TJ500, TJ275, TJ325, TJ280, TJ330, TJ380, TJ430, TJ480, TJ530, A

1шт.

3

87733890C

CORE-SENSOR

Return Number

1шт.

4

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

3шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

10

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

11

121412A1

FUSE,10A, Mini, Red

Red

1шт.

12

48046040

RUBBER MOUNTING

Bushing

3шт.
