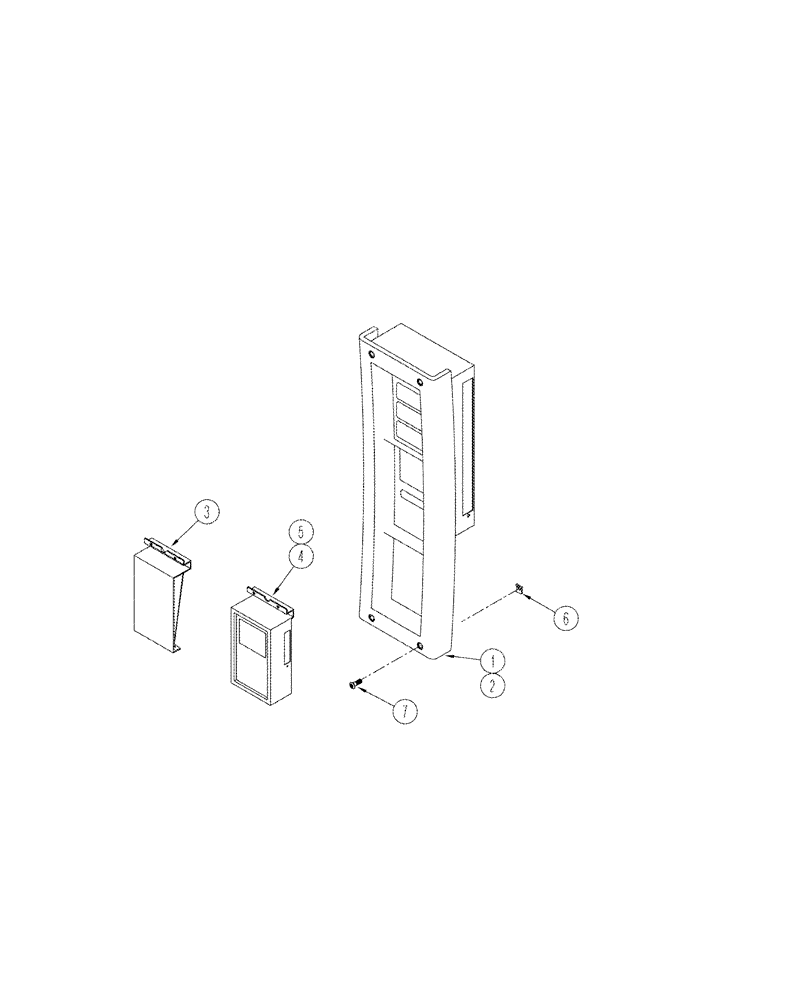

Запчасти Case IH STX325 (04-04) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

362030A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT without performance monitor

1шт.

2

NSS

NOT SOLD SEPARAT

SOFTWARE, without performance monitor, download software for module assy processor from service tool, not illustrated

1шт.

3

358296A1

PANEL

1шт.

4

NSS

NOT SOLD SEPARAT

CLUSTER, INSTRUMENT with performance monitor

1шт.

No Longer Available, See Instrument Cluster 362030A1 for Ordering Instructions

1шт.

5

NSS

NOT SOLD SEPARAT

SOFTWARE, with performance monitor, download software for module assy processor from service tool, not illustrated

1шт.

6

177269A1

SPRING NUT,M4.2

4шт.

7

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

365979A1

KIT

performance monitor, Includes: Ref. 4

1шт.
