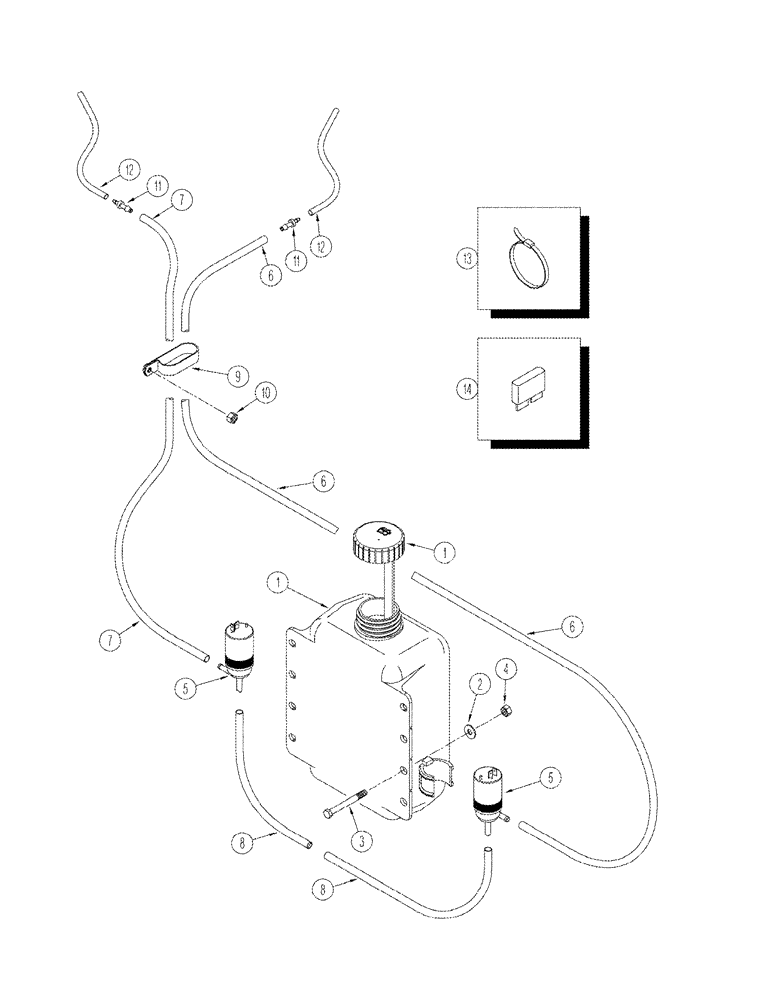

Запчасти Case IH STX325 (04-03) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

313576A1

RESERVOIR

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

3

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

4шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

5

E47238

PUMP,12V

2шт.

6

31-2936

HOSE,4.77 mm ID x 4775.20 mm

4775 mm (188 in.), cut from 4-1056

1шт.

7

31-2370

HOSE,4.7752 mm ID x 3302.00 mm

3302 mm (130 in.), cut from 4-1056

1шт.

8

31-2422

HOSE,4.77 mm ID x 254.00 mm

254 mm (10 in.), cut from 4-1056

1шт.

9

369708A1

CLAMP

4шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

11

31-2364

FITTING

3/16 x 7/64

2шт.

12

4-1056

HOSE

200 mm (8 in.)

2шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

14

121414A1

FUSE,20A, Mini, Yellow

1шт.
