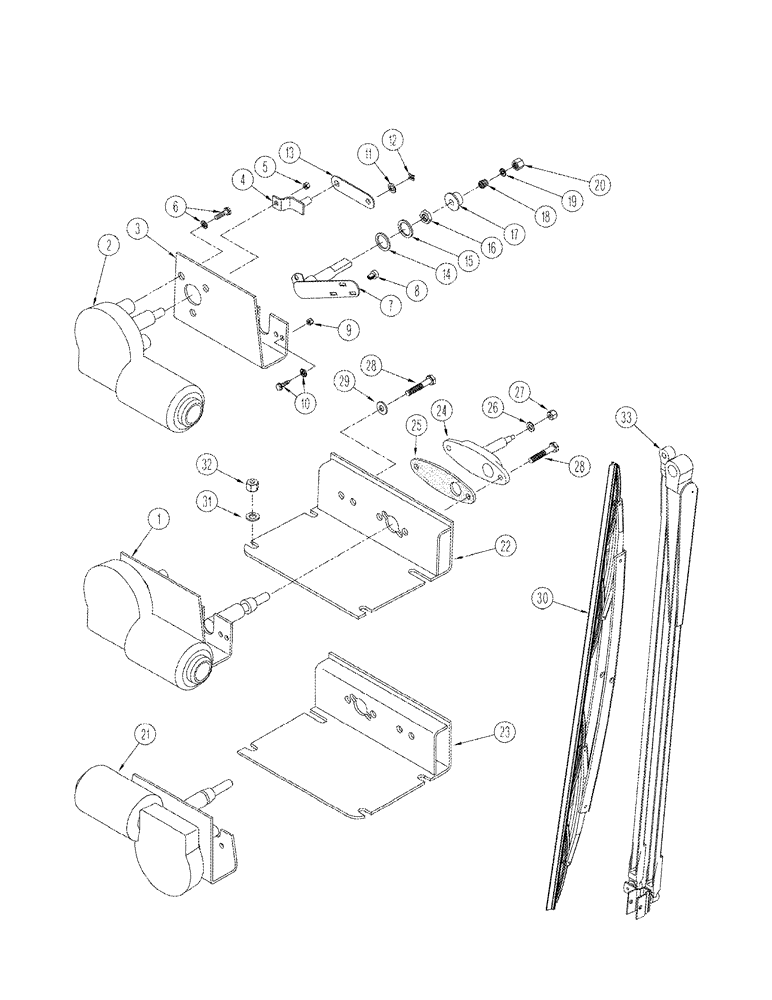

Запчасти Case IH STX325 (04-02) - WIPER, WINDSHIELD MOUNTING (04) - ELECTRICAL SYSTEMS

248812A3

WIPER MOTOR

front, upper, all cab options, consists of: Ref. 2 - 20, 22 - 27

1шт.

339670A2

WIPER MOTOR

front, lower, right-hand, luxury cab, consists of: Ref. 1, 22 - 27

1шт.

334964A2

WIPER MOTOR

front, lower, left-hand, luxury cab, order components, consists of: Ref. 21 - 27

1шт.

1

339730A2

ELECTRIC MOTOR

1шт.

129068A3

ELECTRIC MOTOR

repair, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR

1шт.

3

60-6633T1

SUPPORT

1шт.

4

60-6626T1

LEVER

1шт.

5

143267A1

LOCK NUT

1шт.

6

60-6631T1

SCREW

Includes: lock washer

3шт.

7

60-6581T91

DRIVE ASSY.

1шт.

8

NSS

NOT SOLD SEPARAT

PIN

1шт.

9

NSS

NOT SOLD SEPARAT

NUT

1шт.

10

1-2686

SCREW,no

Includes: lock washer

2шт.

11

1-2684

WASHER

2шт.

12

1-2685

CLIP

2шт.

13

1-2683

LINK

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER steel

1шт.

16

NSS

NOT SOLD SEPARAT

NUT

1шт.

17

NSS

NOT SOLD SEPARAT

CAP

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB knurled

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

20

NSS

NOT SOLD SEPARAT

NUT

1шт.

21

335729A2

ELECTRIC MOTOR

1шт.

22

248784A3

SUPPORT

upper, left-hand

1шт.

23

334963A2

SUPPORT

right-hand

1шт.

60-1436T91

PIVOT ASSY.

pantograph, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

BODY

1шт.

25

2-4190T1

GASKET

1шт.

26

2-4191T1

WASHER

1шт.

27

2-4192T1

NUT

1шт.

28

414-424

BOLT,Hex, 1/4" - 28 x 1-1/2", Gr 5

3шт.

29

495-11028

WASHER,1/4", SAE

1шт.

30

334715A1

BLADE

front, lower, luxury cab, 26

2шт.

30

353273A1

BLADE,558.8mm L

front, upper, 24

2шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

33

334714A2

ARM

20

3шт.

34

86000535

PLUG,1.427" x .62", Plastic

Switch hole, Standard cab, Deluxe cab, Not illustrated

1шт.
