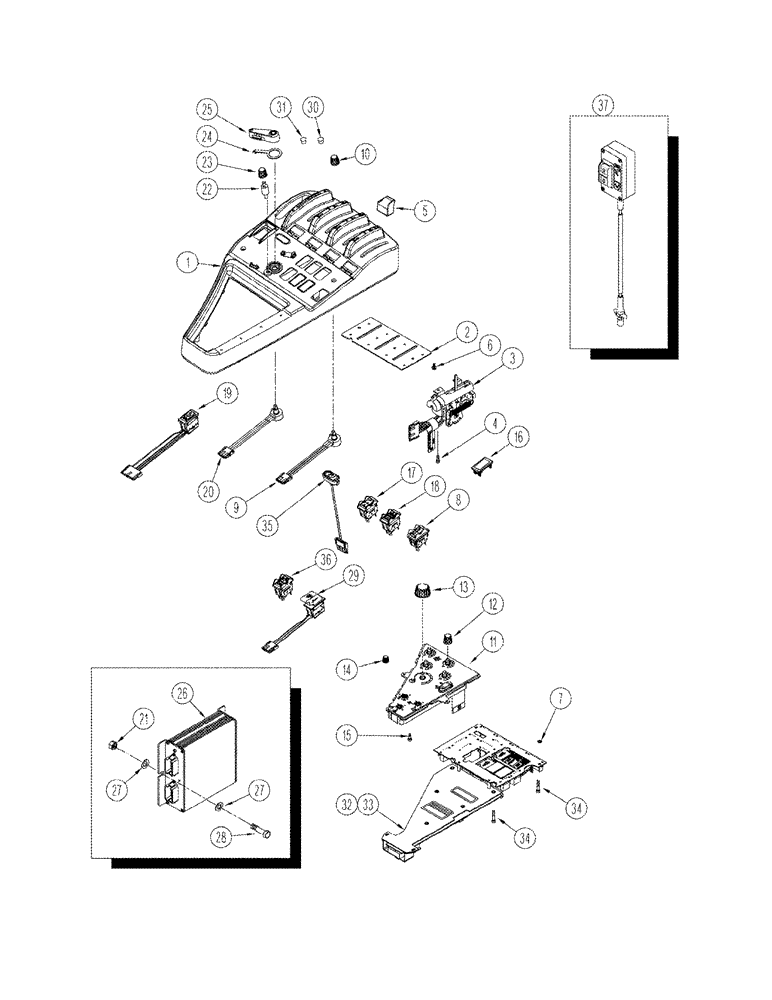

Запчасти Case IH STX325 (04-01) - CONTROLS CONSOLE, RIGHT-HAND (04) - ELECTRICAL SYSTEMS

1y

REF

INSTRUCTION

COVER ASSY, see Page(s) 9-53

1шт.

302995A1

CONTROL

consists of: Ref. 2 - 4

1шт.

47372893R

REMAN-JOYSTICK

STX275, STX325 Both 4WD TRACTOR, Reman for New PN 302995A1

1шт.

47372893C

CORE-JOYSTICK

Return Number

1шт.

2

230098A1

PLATE

1шт.

3

302992A2

LEVER

remote auxiliary valve

1шт.

47372893R

REMAN-JOYSTICK

STX275, STX325 Both 4WD TRACTOR, Reman for New PN 302992A2

1шт.

47372893C

CORE-JOYSTICK

Return Number

1шт.

4

281-3446

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

8шт.

5

220455A3

KNOB

remote

4шт.

6

864-4020

HEX SOC SCREW,M4 x 20mm, Cl 8.8

4шт.

7

A39888

NUT

3/8-32

1шт.

8

277499A1

SWITCH

valve, fifth auxiliary

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control

1шт.

10

276797A1

KNOB

flow control

1шт.

11

339735A1

PANEL

secondary, with three-point hitch

1шт.

11

238290A4

PANEL

secondary, without three-point hitch

1шт.

12

276797A1

KNOB

flow control

4шт.

13

187820A1

KNOB

remote valve timer control

1шт.

14

223433A1

KNOB

electronic draft control, with three-point hitch

2шт.

15

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

2шт.

17

229378A1

SWITCH

differential lock, front

1шт.

18

246809A1

SWITCH

differential lock, rear

1шт.

19

255676A1

SWITCH

hitch position

1шт.

20

256304A2

POTENTIOMETER,1000 Ohm

Three-Point Hitch

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

22

256303A1

STUD

1шт.

23

276797A1

KNOB

1шт.

24

248087A1

LEVER

stop position

1шт.

25

299483A2

CONTROL LEVER

hitch position

1шт.

26

323758A4

CONTROL UNIT

three-point hitch

1шт.

26

323758A4R

REMAN ELECT CONTROL

CONTROL UNIT

1шт.

26

323758A4C

CORE-ELECTRONIC CONT

Return Number

1шт.

26

330537A3

CONTROL UNIT

axle, ACCUSTEER (1)

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

28

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

29

345415A2

SWITCH

power takeoff

1шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

No 3-point hitch

1шт.

31

374705A1

PLUG

no three-point hitch

1шт.

32

323752A5

CONTROL UNIT

1шт.

32

87308354R

REMAN ELECT CONTROL

STX325, STX275, Both CASE IH 4WD TRACTOR, Reman for New PN 323752A5

1шт.

32

87308354C

CORE-ELECTRONIC CONT

Return Number

1шт.

33

NSS

NOT SOLD SEPARAT

SOFTWARE, download software for module assy processor from service tool

1шт.

34

864-4010

HEX SOC SCREW,M4 x 10mm, Cl 8.8

6шт.

35

229376A2

SWITCH

four-wheel drive steering, ACCUSTEER (1)

1шт.

36

229373A1

SWITCH

slip limit control

2шт.

37

382247A1

SWITCH

remote, three-point hitch

1шт.
