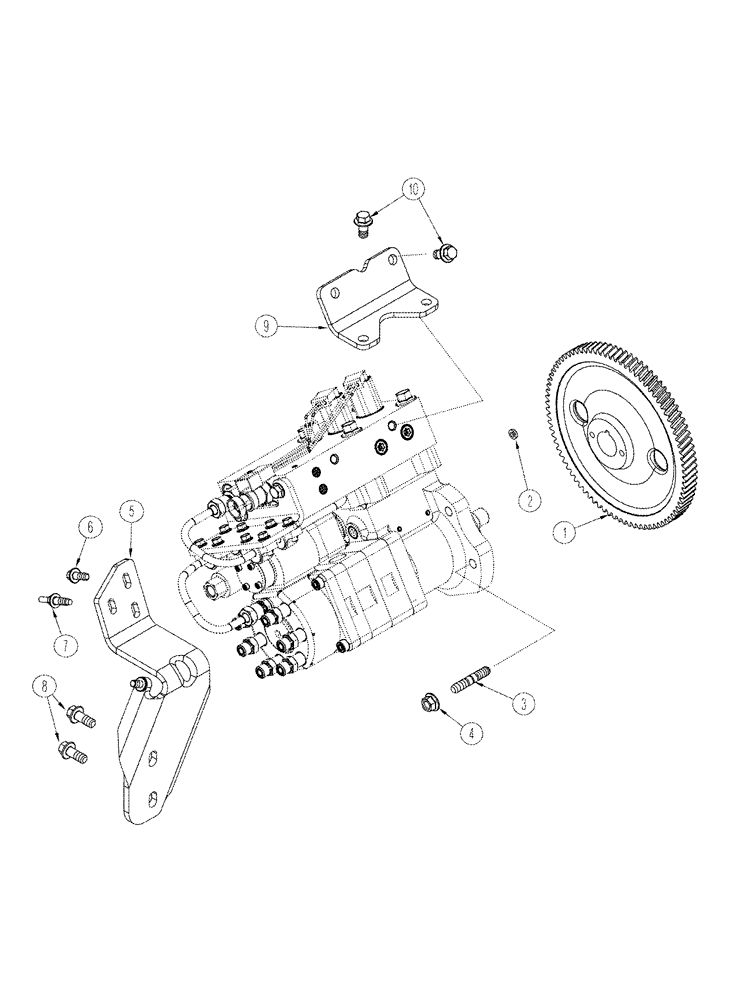

Запчасти Case IH STX325 (03-13) - FUEL INJECTION PUMP GEAR AND MOUNTING BRACKETS 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J942764

GEAR

1шт.

2

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

3

J915036

STUD

55 mm (2-5/32 in.)

4шт.

4

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

5

J943440

SUPPORT

1шт.

6

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

7

J909310

SCREW,Hex Flg, M8 x 1.25 x 25mm, Cl 10.9

1шт.

8

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

9

J943444

SUPPORT

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.
