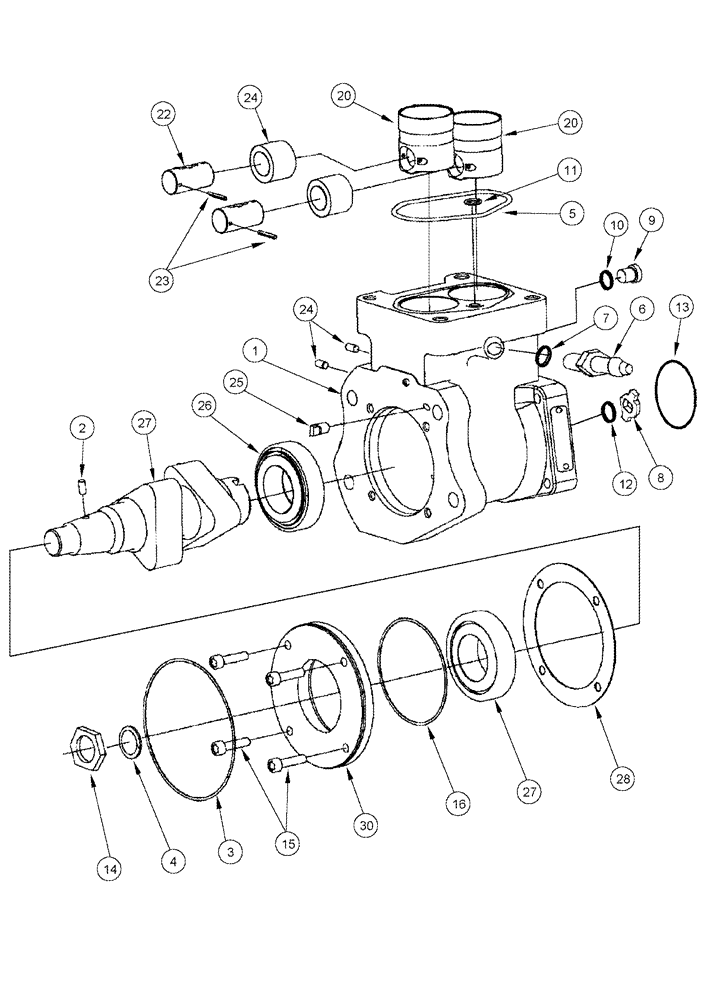

Запчасти Case IH STX325 (03-12) - FUEL INJECTION PUMP 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

A77928

HOUSING

cam housing, 6TAA-8304, consists of: Ref. 1 - 30

1шт.

AR77928

REMAN-HOUSING

cam housing, 6TAA-8304, remanufactured

1шт.

AC77928

CORE-HOUSING

Return Part Number

1шт.

J4010271

KIT

cam housing, 6TAA-9004, consists of: Ref. 1 - 30

1шт.

JR4010271

REMAN-HOUSING

cam, 6TAA-9004

1шт.

JC4010271

CORE-HOUSING

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

J329899

DOWEL,5.01mm OD x 10mm L

1шт.

3

J330081

O-RING

1шт.

4

J330252

LOCK WASHER

1шт.

5

J4010636

SEAL

1шт.

6

J348448

ELEC CONNECTOR

Includes: Ref. 7

1шт.

7

J678925

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

8

J417071

HUB

1шт.

9

J678923

PLUG,M10 x 1

10 mm, Includes: Ref. 10

1шт.

10

J678925

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

11

J867640

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

12

J867641

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

13

J867642

O-RING,0.07" Thk x 2.489" ID, -37, Cl 5, 75 Duro

1шт.

14

J926593

NUT

M20 x 1.5

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT

4шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

20

NSS

NOT SOLD SEPARAT

TAPPET

2шт.

21

NSS

NOT SOLD SEPARAT

ROLLER

2шт.

22

NSS

NOT SOLD SEPARAT

PIN

2шт.

23

NSS

NOT SOLD SEPARAT

PIN roll

2шт.

24

NSS

NOT SOLD SEPARAT

PIN dowel

2шт.

25

NSS

NOT SOLD SEPARAT

PIN

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING roller

1шт.

27

NSS

NOT SOLD SEPARAT

CAMSHAFT

1шт.

28

NSS

NOT SOLD SEPARAT

SHIM

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING roller

1шт.

30

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.
