Запчасти Case IH STX325 (03-05) - FUEL INJECTION SYSTEM 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

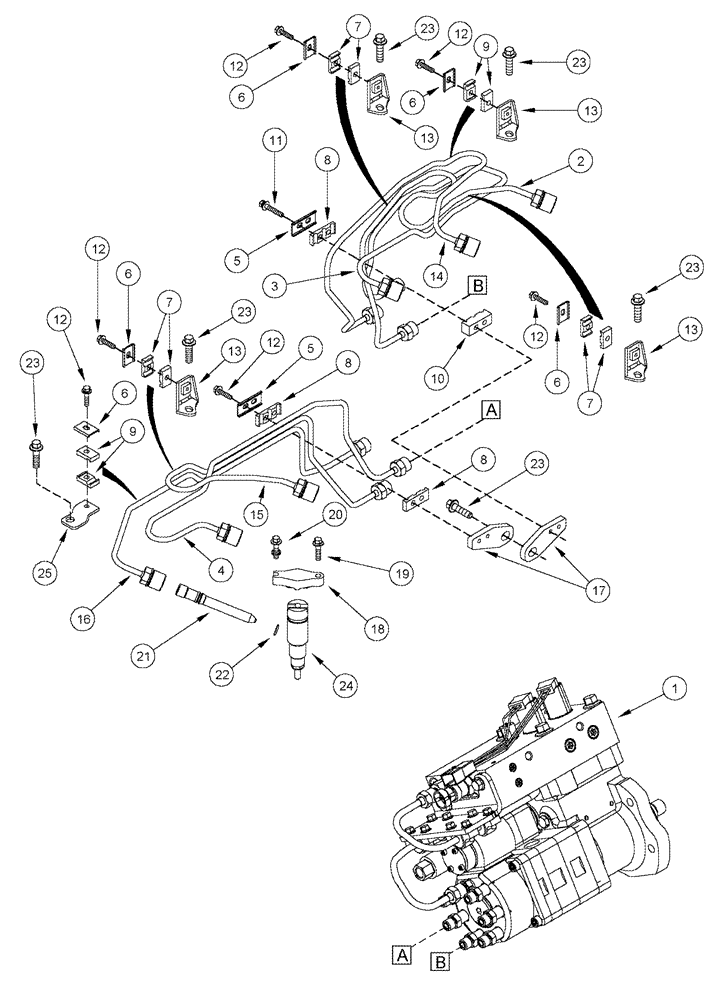

Схема запчастей Case IH STX325 - (03-05) - FUEL INJECTION SYSTEM 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
8
5
19
9
7
23
4
23
13
13
23
24
9
10
6
23
12
23
14
13
8
23
6
22
12
12
21
7
18
3
5
12
13
12
17
6
11
8
6
2
16
6
15
12
25
7
1

Артикул

Название

Примечание

Количество

1

J4076442

FUEL INJECTION PUMP

see Figure 03-08, 6TAA-8304

1шт.

1

JR4076442

REMAN-INJECTION PUMP

STX275

1шт.

1

JC4076442

CORE-INJECTION PUMP

Return Part Number

1шт.

1

A78006

KIT

Kit -- Instructions 6-10880 and Electrical Connector J164187

1шт.

1

J4076443

PUMP, FUEL INJECTION

PUMP, INJECTION see Figure 03-08, 6TAA-9004

1шт.

1

JR4076443

REMAN-INJECTION PUMP

STX325

1шт.

1

JC4076443

CORE-INJECTION PUMP

Return Part Number

1шт.

1

87441514R

REMAN-FUEL INJECTOR

Reman For New P/N J4076443

1шт.

1

87441514C

CORE-FUEL INJECTOR

Return Part Number CORE - ICV Pum

1шт.

2

J944686

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 1

1шт.

3

J944690

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 3

1шт.

4

J944694

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 5

1шт.

5

J904519

SUPPORT

2шт.

6

CURJ904711

CLAMP

5шт.

7

J917746

CLAMP

6шт.

8

J917747

CLAMP

3шт.

9

J919359

CLAMP

4шт.

10

J944699

CLAMP

1шт.

11

J944717

CAPTIVE WASHER SCREW

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

7шт.

13

J930688

SUPPORT

4шт.

14

J944688

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 2

1шт.

15

J944692

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 4

1шт.

16

J944696

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 725 mm L

No. 6

1шт.

17

J944698

SUPPORT

2шт.

18

J940639

CLAMP

6шт.

19

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

6шт.

20

J940817

SCREW,Hex Flg, M6 x 1 x 25mm

6шт.

21

J944833

FUEL TUBE

6шт.

22

J867043

SEAL,1.78mm Thk x 10.82mm ID

6шт.

23

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

6шт.

24

J948529

INJECTOR ASSY.

see Figure 03-14, 6TAA-8304

6шт.

24

JR948529

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

24

JC948529

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

6шт.

24

J948608

NOZZLE INJECTION

see Figure 03-14, 6TAA-9004

6шт.

25

J943503

SUPPORT

1шт.

Выбрано товаров: 36
