Запчасти Case IH STX325 (03-03) - FUEL LINE (03) - FUEL SYSTEM

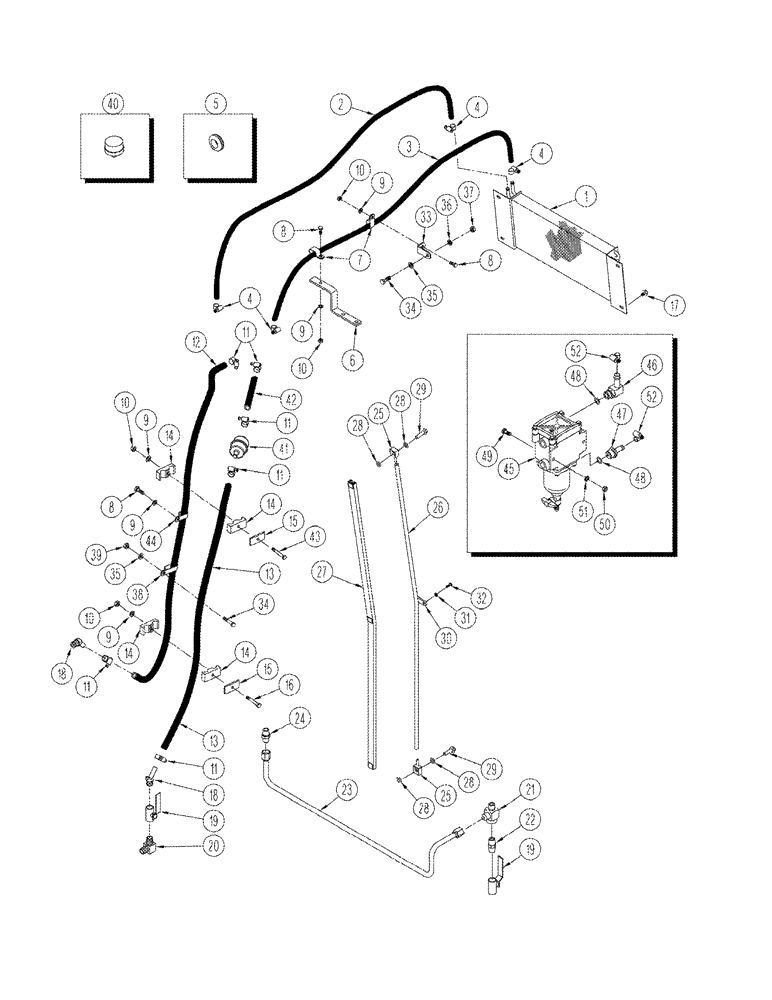

Схема запчастей Case IH STX325 - (03-03) - FUEL LINE (03) - FUEL SYSTEM
5
11
13
3
14
48
25
8
11
4
9
50
31
28
4
43
29
12
20
44
11
52
49
38
13
33
14
11
23
10
8
21
17
9
25
26
7
37
28
46
1
40
18
28
47
10
18
36
9
14
16
39
28
19
45
30
32
19
48
52
42
9
11
6
22
51
9
10
8
15
27
35
29
24
10
14
15
34
41
4
34
35
2

Артикул

Название

Примечание

Количество

1

319549A1

COOLER

1шт.

2

338969A1

FUEL HOSE,9.53 mm ID x 2180.00 mm

Return, Cut From 32-012

1шт.

3

338970A1

FUEL HOSE,9.53 mm ID x 1738.00 mm

Cut From 32-012

1шт.

4

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

5

248-2146

GROMMET,5/8" ID x 7/8" Groove Dia

2шт.

6

359105A1

BRACKET

1шт.

7

31-1070

CLAMP,5/8", 3/8" Bolt, Double

2шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

STX 275 (4), STX 325 (4), ACCUSTEER (5)

1шт.

11

214-1408

HOSE CLAMP,11.2mm - 19.8mm

6шт.

12

338972A1

FUEL HOSE,12.70 mm ID x 3064.00 mm

Return, Cut From 32-080T1, STX 275 (1), STX 325 (1)

1шт.

12

372276A1

HOSE

return, cut from 32-080T1, ACCUSTEER (1)

1шт.

13

372277A1

HOSE

supply, 2870 mm (113 in.), cut from 32-080T2, STX 275 (1), STX 325 (1)

1шт.

13

31-2107

FUEL HOSE

supply, 3302 mm (130 in.), cut from 32-080T1, ACCUSTEER (1)

1шт.

14

50-2551T1

CLAMP

STX 275 (4), STX 325 (4), ACCUSTEER (6)

1шт.

15

50-2533T1

PLATE

STX 275 (2), STX 325 (2), ACCUSTEER (3)

1шт.

16

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

2шт.

17

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

4шт.

18

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1/2 x 1/2 barb

2шт.

19

31-1267

SHUT-OFF VALVE

ball

2шт.

20

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1/2 PT

1шт.

21

31-1000

TEE

1/2 PT x 1/2 PT x 7/8 fl

1шт.

22

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1/2 PT x 1-7/8

1шт.

23

314287A1

TUBE

1шт.

24

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

7/8 fl x 1/2 PT

1шт.

25

352767A1

FITTING

2шт.

26

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

Sight Gauge, Cut From 337242A1

1шт.

27

349870A1

CHANNEL

sight gauge

1шт.

28

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

29

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

30

402800A1

BRACKET

1шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

32

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

33

369960A1

BRACKET

fuel line

1шт.

35

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

34

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

36

892-11010

LOCK WASHER,M10

1шт.

37

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

38

L101181

CLAMP,0.75" D Clamping pipes x 2

STX 275 (2), STX 325 (2), ACCUSTEER (1)

1шт.

39

833-40310

NUT,M10, U

1шт.

40

90-7732T1

BREATHER

1шт.

41

194199A1

FUEL FILTER

fuel, in-line

1шт.

42

31-3084

HOSE,5.00"

127 mm (5 in.), cut from 32-080T1

1шт.

43

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

Accusteer (1)

1шт.

44

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

45

395565A1

FILTER, FUEL

auxiliary

1шт.

46

217-367

FITTING,90 Degree Elbow, 1/2" Hose Barb x 7/8" - 14 Male ORB

1/2 barb x 7/8 or, Includes: Ref. 48

1шт.

47

217-389

FITTING,1/2" Hose Barb x 7/8" - 14 Male ORB

1/2 stem x 7/8, Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

50

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

51

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

52

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.
