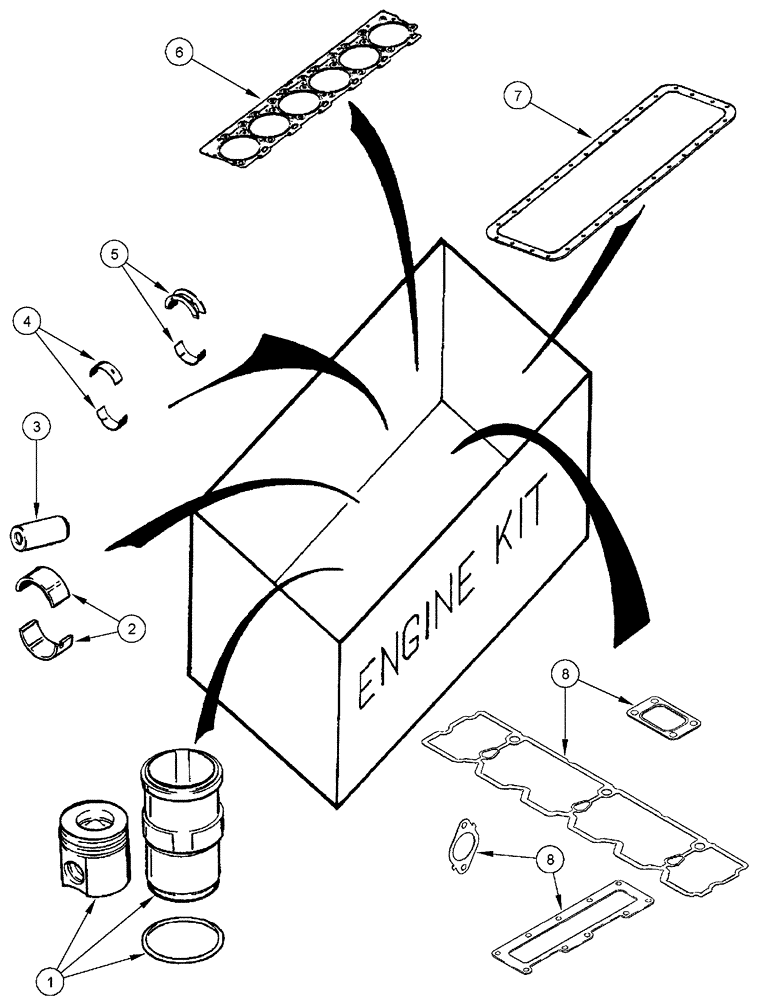

87422169
ENGINE OVERHAUL KIT
1шт.
1
87422167
KIT
Piston, Standard
6шт.
See Fig. 02-056
1шт.
Some Parts Not Shown
1шт.
2
87443389
BEARING LINER
Kit - Upper And Lower, Standard
6шт.
See Fig. 02-056
1шт.
3
J934046
PISTON PIN,45mm OD x 91mm L
Piston
6шт.
See Fig. 02-056
1шт.
4
J945930
BEARING SET
Main, Upper and Lower Set, Standard
6шт.
See Fig. 02-054
1шт.
5
A78027
BEARING LINER
Main Thrust, Upper And Lower Set, Standard
1шт.
See Fig. 02-054
1шт.
6
J943366
CYLINDER HEAD GASKET,2.11mm Thk
Standard
1шт.
See Fig. 02-047
1шт.
7
87308050
GASKET,0.95mm Thk
Oil Pan
1шт.
See Fig. 02-042
1шт.
Some Parts Not Shown
1шт.
8
A78018
GASKET KIT
Valve Grind
1шт.
See Fig. 02-058
1шт.
Some Parts Not Shown
1шт.
A78003
GASKET KIT
Basic Service Engine
1шт.
Not Shown
1шт.
1
86637735
SEAL,9.53mm ID x 13.97mm OD
3/8 Tube, Fl
2шт.
Not Shown
1шт.
2
238-5013
O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro
2шт.
Not Shown
1шт.
3
238-7018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
1шт.
Not Shown
1шт.
4
238-7210
O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro
6шт.
Not Shown
1шт.
5
313262A1
O-RING,0.07" Thk x 0.364" ID
2шт.
Not Shown
1шт.
6
J937706
GASKET,0.79mm Thk
Turbo Oil Drain Tube
1шт.
Not Shown
1шт.
7
J330081
O-RING
3.859 ID X 0.139 Inch Wide
1шт.
Not Shown
1шт.
8
J330202
O-RING,11.3MM ID x 2.2 Thk
2шт.
Not Shown
1шт.
9
J330478
O-RING,0.07" Thk x 0.676" ID
Sealing
2шт.
Not Shown
1шт.
10
J678603
O-RING,2.2mm Thk x 9.3mm ID
2шт.
Not Shown
1шт.
11
J678912
O-RING,2.2mm Thk x 11.3mm ID
2шт.
Not Shown
1шт.
12
J867043
SEAL,1.78mm Thk x 10.82mm ID
6шт.
Not Shown
1шт.
13
J883284
O-RING,0.07" Thk x 2.364" ID, -36
1шт.
Not Shown
1шт.
14
J937142
SEAL,7mm ID x 15mm OD x 1.5mm Thk
Injector Nozzle, 7 Mm Injector Tip
6шт.
Not Shown
1шт.
15
J911941
GASKET
Mounting, Turbocharger
1шт.
Not Shown
1шт.
16
J912473
SEAL,157mm ID x 163.18mm OD x 7.03mm Thk
SEALRING Flywheel Housing To Block
1шт.
Not Shown
1шт.
17
J917892
GASKET,0.79mm Thk
Mounting
1шт.
Not Shown
1шт.
18
J919369
GASKET,0.5mm Thk
Turbocharger To Manifold
1шт.
Not Shown
1шт.
19
J939258
GASKET,1.21mm Thk
lift pump
1шт.
Not Shown
1шт.
20
87415913
SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk
Special, 12 X 19 X 1.5 MM
4шт.
Not Shown
1шт.
21
J937479
MANIFOLD GASKET
Exhaust Manifold
6шт.
Not Shown
1шт.
22
J944646
MANIFOLD GASKET
Intake Manifold Cover
1шт.
Not Shown
1шт.
23
J944647
GASKET
Connector
1шт.
Not Shown
1шт.
24
J944683
GASKET
Breather
1шт.
Not Shown
1шт.
25
87405641
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
Sealing
2шт.
Not Shown
1шт.
