Запчасти Case IH STX325 (02-29) - GASKET KIT 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

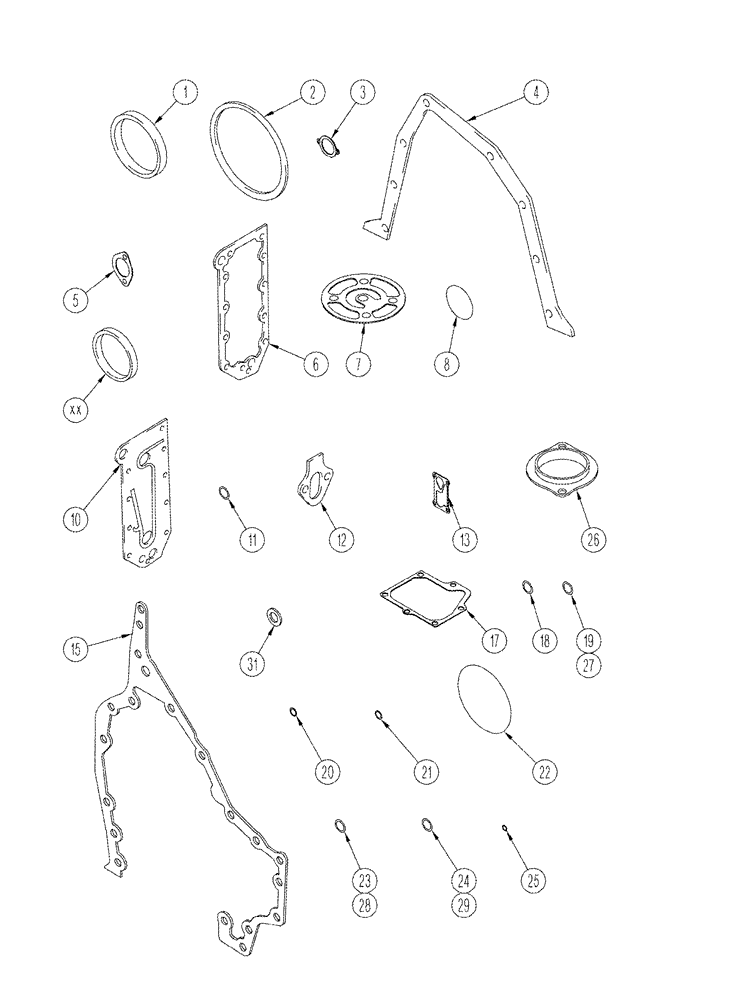

Схема запчастей Case IH STX325 - (02-29) - GASKET KIT 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE
27
13
2
15
5
26
31
19
29
17
7
3
8
4
1
25
21
23
20
xx
18
12
11
10
28
22
24
6

Артикул

Название

Примечание

Количество

A77981

GASKET KIT

consists of: Ref. 1 - 31

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front cover, see Figure 02-12

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

see Figures 02-24, 02-27

6шт.

3

J913032

GASKET

water inlet, see Figure 02-24, 6TAA-8304

1шт.

3

J945603

GASKET,1.65mm Thk

water inlet, see Figure 02-24, 6TAA-9004

1шт.

4

J914301

GASKET

rear cover, see Figure 02-25

1шт.

5

J914302

GASKET

suction tube, see Figure 02-18

1шт.

6

J918174

GASKET,0.71mm Thk

oil cooler, see Figure 02-17

1шт.

7

J921605

GASKET

filter head, see Figure 02-17

1шт.

8

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID, see Figure 02-24

1шт.

9

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

1шт.

10

J929011

GASKET,1.19mm Thk

oil cooler, see Figure 02-17

1шт.

11

J930911

O-RING,0.07" Thk x 0.8" ID

3/4" ID x 1/16", See Figure 02-17

1шт.

12

J931059

GASKET

pump, see Figure 02-24

1шт.

13

J937367

GASKET

see Figure 02-21

1шт.

15

J944293

GASKET,1.01mm Thk

gear, see Figure 02-12

1шт.

17

J944683

GASKET

see Figure 02-22

1шт.

18

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

See Figures 03-06, 03-07

2шт.

19

237-8010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

See Figures 03-06, 03-07

2шт.

20

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Figure 02-21

1шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figure 02-21

2шт.

22

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

See Figure 02-11

1шт.

23

A77724

O-RING,3.05mm Thk x 23.62mm ID

see Figure 02-17

1шт.

24

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm, see Figure 02-24

2шт.

25

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Figs 03-06, 03-07

9шт.

26

J945603

GASKET,1.65mm Thk

water inlet

1шт.

27

237-8012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

1шт.

28

J678912

O-RING,2.2mm Thk x 11.3mm ID

2шт.

29

J330202

O-RING,11.3MM ID x 2.2 Thk

2шт.

30

J935171

SEALING WASHER

12 x 19 x 1.5 mm

4шт.

Выбрано товаров: 30
