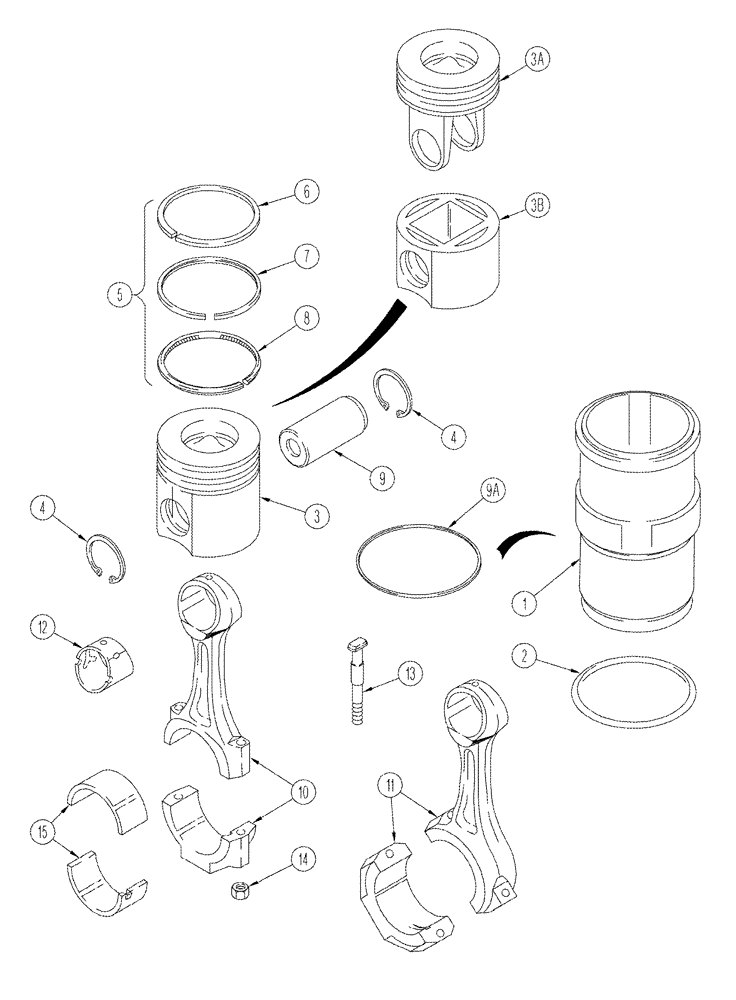

Запчасти Case IH STX325 (02-27) - PISTONS CONNECTING RODS 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77901

PISTON & RINGS KIT

standard, 6TAA-8304, consists of: Ref. 1, 2, 3, 4 - 8

6шт.

A77974

KIT

standard, 6TAA-9004, consists of: Ref. 1, 2, 3A, 4 - 8

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

J800316

PISTON & RINGS KIT

standard, 6TAA-8304, consists of: Ref. 3, 4 - 8

1шт.

A77853

PISTON & RINGS KIT

6TAA-9004, Includes: Ref. 3, 4, 6 - 8

1шт.

A77973

PISTON & RINGS KIT

standard, 6TAA-9004, Includes: Ref. 3A - 8

6шт.

3

NSS

NOT SOLD SEPARAT

PISTON

1шт.

3b

NSS

NOT SOLD SEPARAT

PISTON

1шт.

3c

NSS

NOT SOLD SEPARAT

SKIRT

1шт.

4

100-21175

SNAP RING,1.75", Int, #175

2шт.

5

J802429

PISTON RINGS KIT

standard, 6TAA-8304, Includes: Ref. 6 - 8

1шт.

5

J800912

PISTON RINGS KIT

standard, 6TAA-9004, consists of: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

RING top

1шт.

7

NSS

NOT SOLD SEPARAT

RING middle

1шт.

8

NSS

NOT SOLD SEPARAT

RING bottom

1шт.

9

J901597

PIN

6TAA-8304

6шт.

9

J941052

PIN

6TAA-9004

6шт.

9b

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9b

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9b

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9b

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9b

J924449

SHIM,1.000mm Thk

(.040")

1шт.

10

J901383

CONNECTING ROD

6TAA-8304, Includes:Ref. 10 - 14

6шт.

10

84487529R

REMAN-CONNECTING ROD

6TAA-8304, Includes:Ref. 10 - 14

6шт.

10

84487529C

CORE-ROD CONNECTING

Return Number

6шт.

10

JR901383

REMAN-CONNECTING ROD

6TAA-8304, consists of: Ref. 10 - 14

6шт.

10

JC901383

CORE-ROD CONNECTING

Return Number

6шт.

11

J945703

ROD

6TAA-9004, consists of: Ref. 11 - 13

6шт.

11

JR945703

REMAN-CONNECTING ROD

6TAA-9004, consists of: Ref. 11 - 13

6шт.

11

JC945703

CORE-ROD CONNECTING

Return Number

6шт.

12

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

6TAA-8304

1шт.

12

J942087

BUSHING

6TAA-9004

1шт.

13

J928870

ROD

6TAA-8304

2шт.

13

J944679

BOLT

6TAA-9004

2шт.

14

J934864

NUT

6TAA-8304

2шт.

15

A77563

BEARING SET

standard

6шт.

15

A77564

BEARING SET

undersize, 0.25 mm

6шт.

15

A77565

BEARING SET

undersize, 0.50 mm

6шт.

15

A77566

BEARING SET

undersize, 0.75 mm

6шт.

15

A77567

BEARING SET

undersize, 1.00 mm

6шт.
