Запчасти Case IH STX325 (02-26) - FLYWHEEL 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

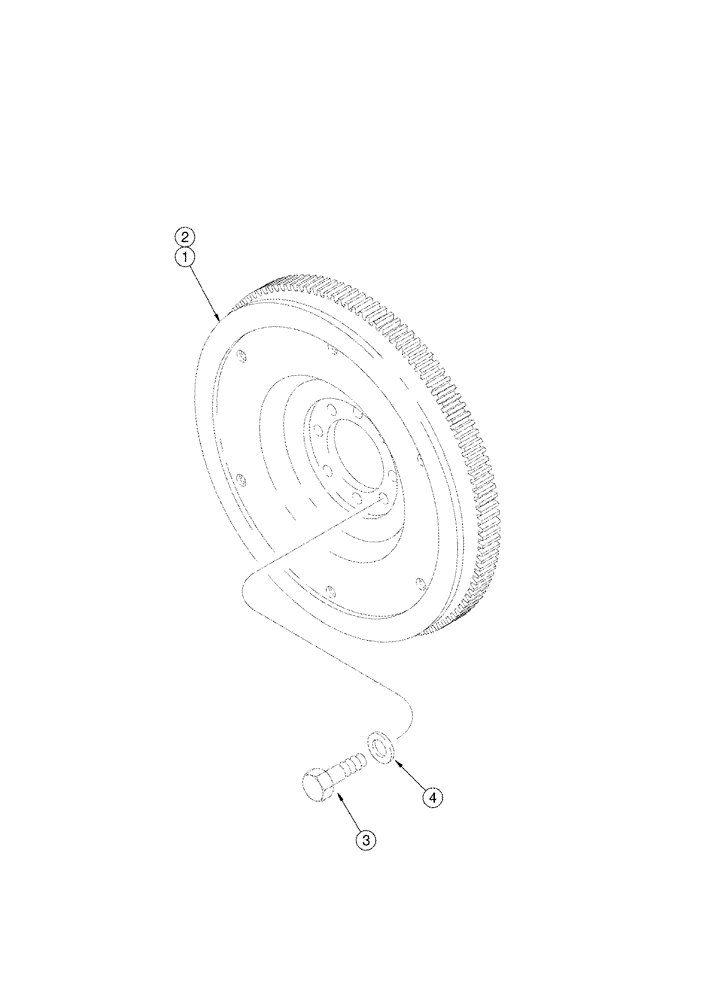

Схема запчастей Case IH STX325 - (02-26) - FLYWHEEL 6TAA-8304 / 6TAA-9004 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
4
1
2
3

Артикул

Название

Примечание

Количество

1

J918624

FLYWHEEL

consists of: Ref. 2

1шт.

2

J908546

RING GEAR

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

Выбрано товаров: 4
